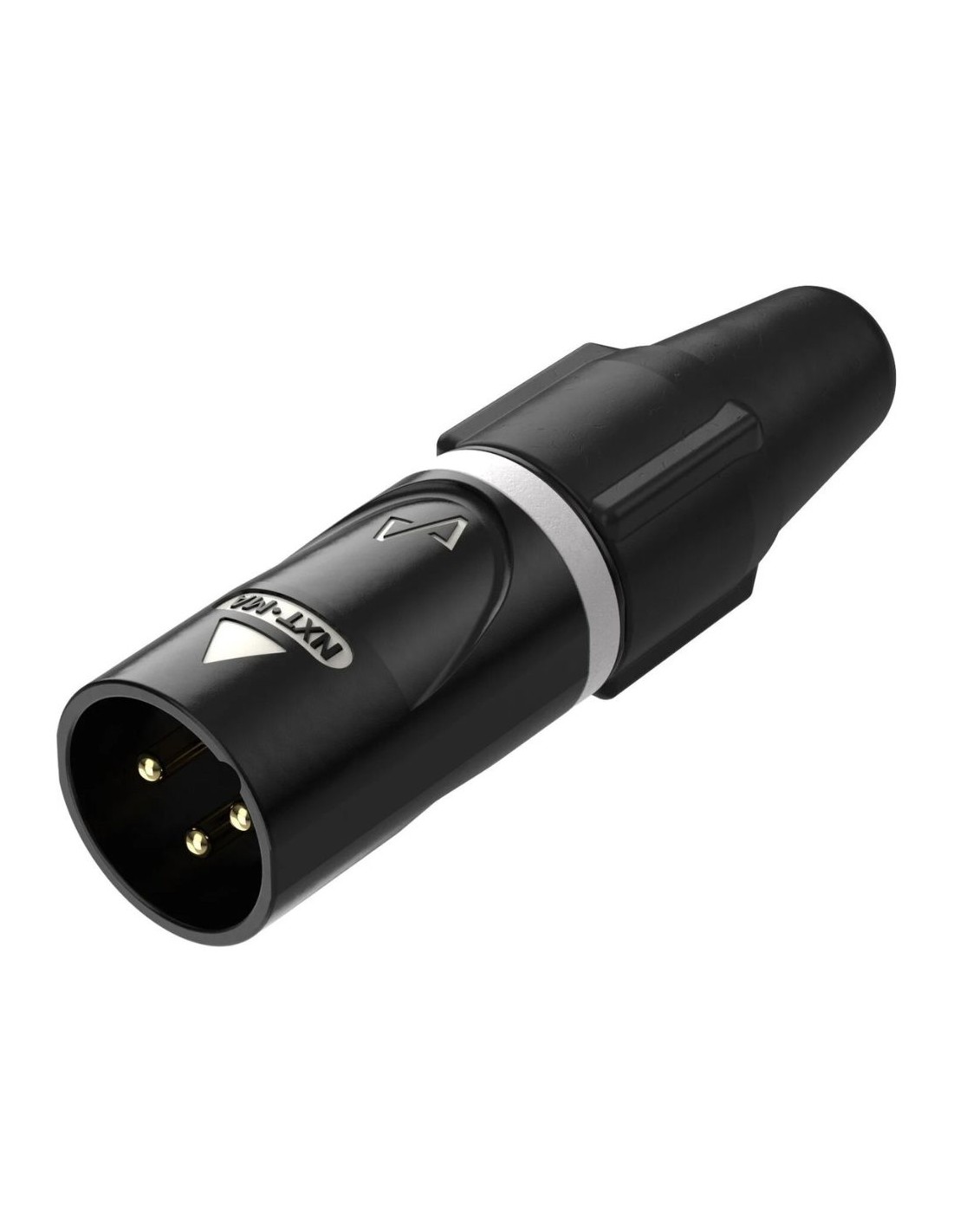

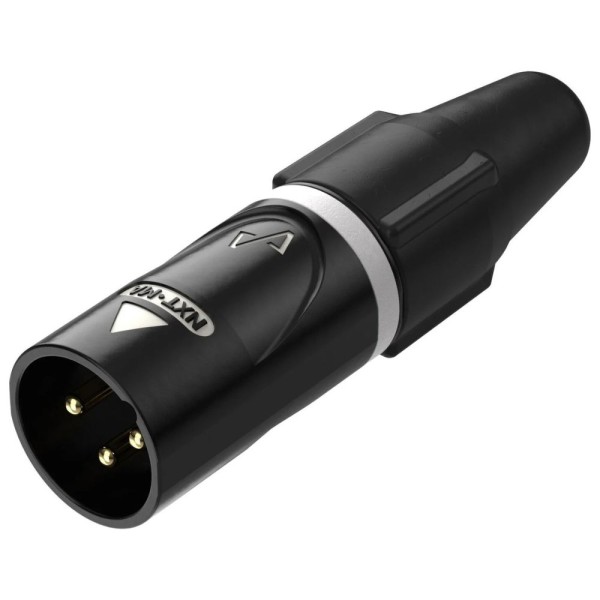

Contattaci subitoConnettore XLR a 3 Poli maschio
Il connettore per cavo XLR EnovaNxt è un innovativo connettore a 3 poli, sviluppato utilizzando la tecnologia brevettata "True Mold". Il connettore a 3 poli è versatile e adatto sia ai microfoni che ad altre apparecchiature audio.
Grazie al suo design sofisticato, il connettore per cavo XLR EnovaNxt non è solo uno strumento tecnico, ma anche un accessorio elegante che si adatta perfettamente a qualsiasi configurazione.
Lunghezza: 75,1 mm
Larghezza: 22 mm
Altezza: 22 mm
- Tipo connettore
- XLR
- Maschio/Femmina
- Maschio
| Brand: | EnovaNxt |
| Connector type: | XLR, XLR male 3 pol |
| Connection mode: | Latch |
| Number of contacts: | 3 |
| Gender (M / F): | Male plug |
| Connector housing color: | Black |
| Cable diameter min. in mm: | 3.0 |
| Cable diameter max. in mm: | 8.0 |
| Wire size: | max. 16AWG |
| Wiring mode: | Solder contact |
| Material connector housing: | ZnAl4Cu1 |
| Material contact: | Bronze |
| Working temperature minimum: | -30° |
| Working temperature maximum: | +80° |
| Plug cycle: | 1000 |
| Classification flammability of plastics: | UL94-V0 |
| ROHS according to EN62321-1: | Ja |
| Country of origin: | Österreich/Austria |
| Operating voltage (VAC.RMS): | < 50 V |
| Insulation resistance: | > 10 GΩ |
| Contact resistance: | ≤ 3 mΩ |
| Applications: | DJ, Keyboard player, Lighting technician, Singer, Sound engineer |
| Markets: | Event Production, Industrie, Medical technology, Mechanical engineering, Gerätebau, Plant construction, Multimedia Installation, Digital Signage, Cable Assembly, Beleuchtung, System Integrator, Outdoor lighting, Broadcast, Recording studio |
