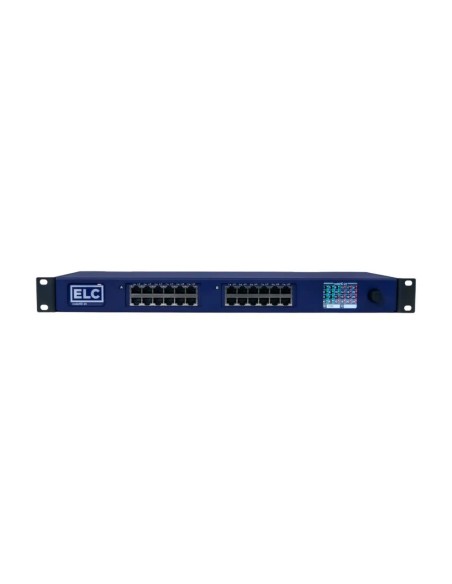

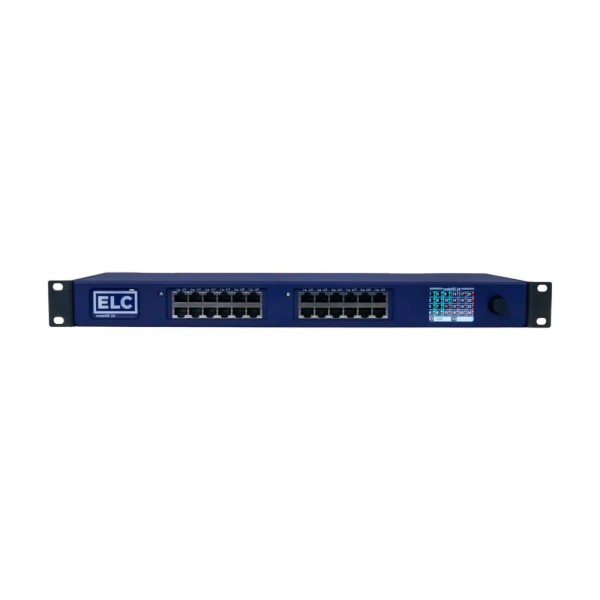

dmxLAN nodeHD 24 DMX nodo Ethernet/DMX o DMX/Ethetnet, RDM compatibile. Due moduli RJ45 inclusi
dmxLAN nodeHD 24 DMX nodo Ethernet/DMX o DMX/Ethetnet, RDM compatibile. Due moduli RJ45 inclusi
  • Nuovo
dmxLAN nodeHD 24 DMX nodo Ethernet/DMX o DMX/Ethetnet, RDM compatibile. Due moduli RJ45 inclusi
dmxLAN nodeHD 24 DMX nodo Ethernet/DMX o DMX/Ethetnet, RDM compatibile. Due moduli RJ45 inclusi

dmxLAN nodeHD 24 DMX nodo Ethernet/DMX o DMX/Ethetnet, RDM compatibile. Due moduli RJ45 inclusi

ELC-DLNHD24RJ45
Array ( [lastname] => [firstname] => [email] => [last_passwd_gen] => [birthday] => [newsletter] => [newsletter_date_add] => [ip_registration_newsletter] => [optin] => [website] => [company] => [siret] => [ape] => [outstanding_allow_amount] => 0 [max_payment_days] => 0 [active] => 1 [note] => [is_guest] => [id_shop] => [id_shop_group] => [id_default_group] => 1 [date_add] => [date_upd] => [reset_password_token] => [reset_password_validity] => [id] => [is_logged] => [gender] => Array ( [type] => [name] => [id] => ) [risk] => Array ( [name] => [color] => [percent] => [id] => ) [addresses] => Array ( ) ) 1

Hai bisogno di maggiori informazioni su questo prodotto?

Contattaci subito


dmXLAN nodeHD 24 è un nodo DMX/Ethernet dotato di 24 porte DMX modulari completamente isolate, doppie porte Ethernet Gigabit e un display TFT integrato.

Disponibile in due varianti:

- ELC-DLNHD24RJ45 – Nodo equipaggiato con due moduli RJ45

- ELC-DLNHD24ECON – Nodo equipaggiato con due moduli EtherCON

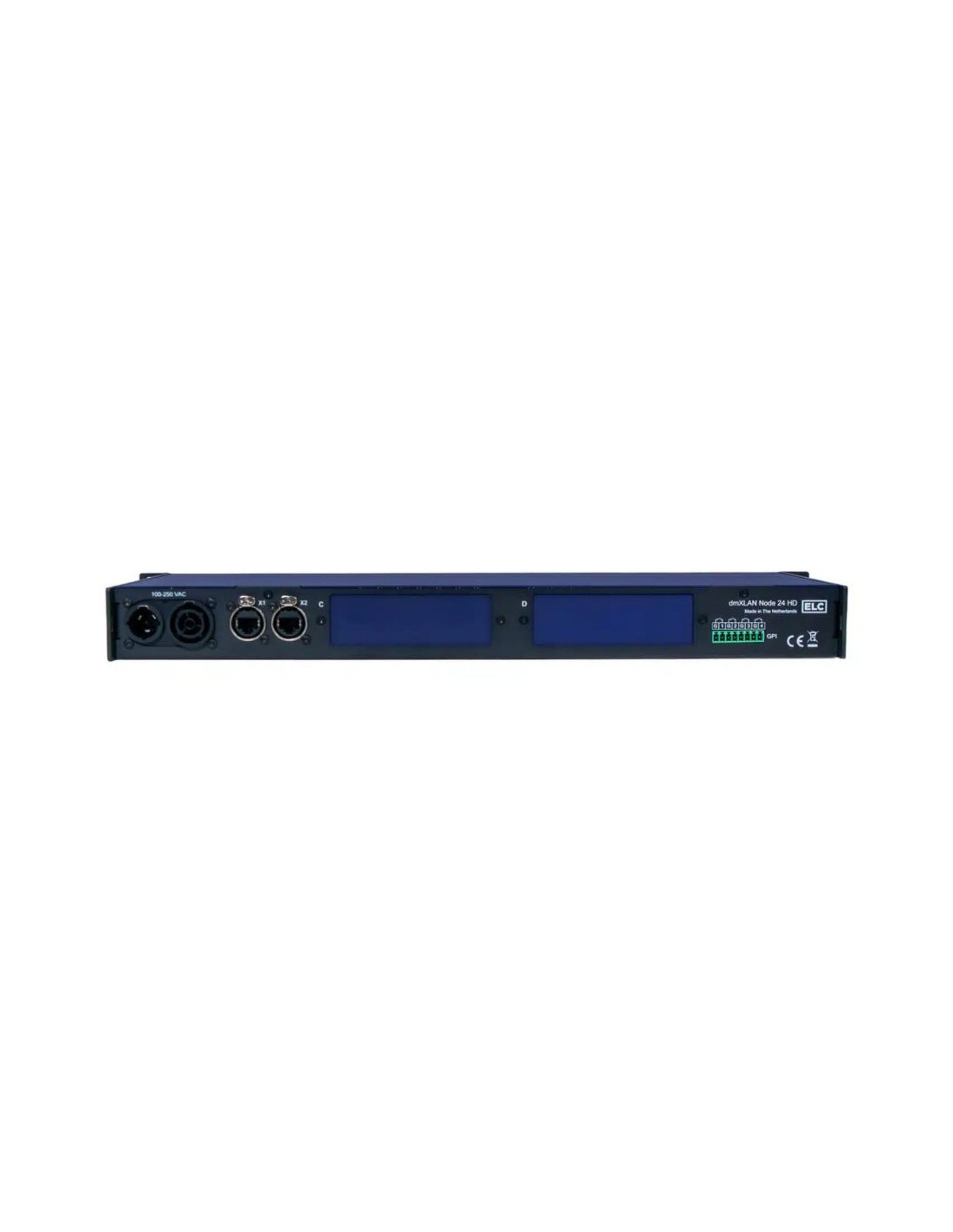

Questi moduli possono essere installati sia sul fronte sia sul retro dell’unità.

Visita il sito del produttore

Tipologia
Nodi Lighting

2x 12 DMX ports combined in physical connector modules

RDM compatible

Supports sACN, Art-Net, Shownet, Vision.net & RTTrPL

Supports pixel LED string protocols WS2812, WS2813, UCS1903, and SK6822, providing control for up to 12,240 serial LEDs from a single unit

Remote programming and monitoring and fixture parameter override

DMX Input normal or backup (redundant DMX)

DMX Output normal, HTP, Priority merging, Softpatch (channel by channel), programmable merging with DMX channel control

Four configurable GPI contact closures

Support for WYSIWYG, Depence, Capture, Vision and other visualization software

EtherCON modules with 3 EtherCONs using the AES-72-1M pinout providing 4 DMX ports combined in a single connector. Polarity of pins 4 & 5 can be reversed by a jumper on the module itself

RJ45 modules with 12 RJ45 connectors using the standard ESTA pinout providing a single DMX port per connector
