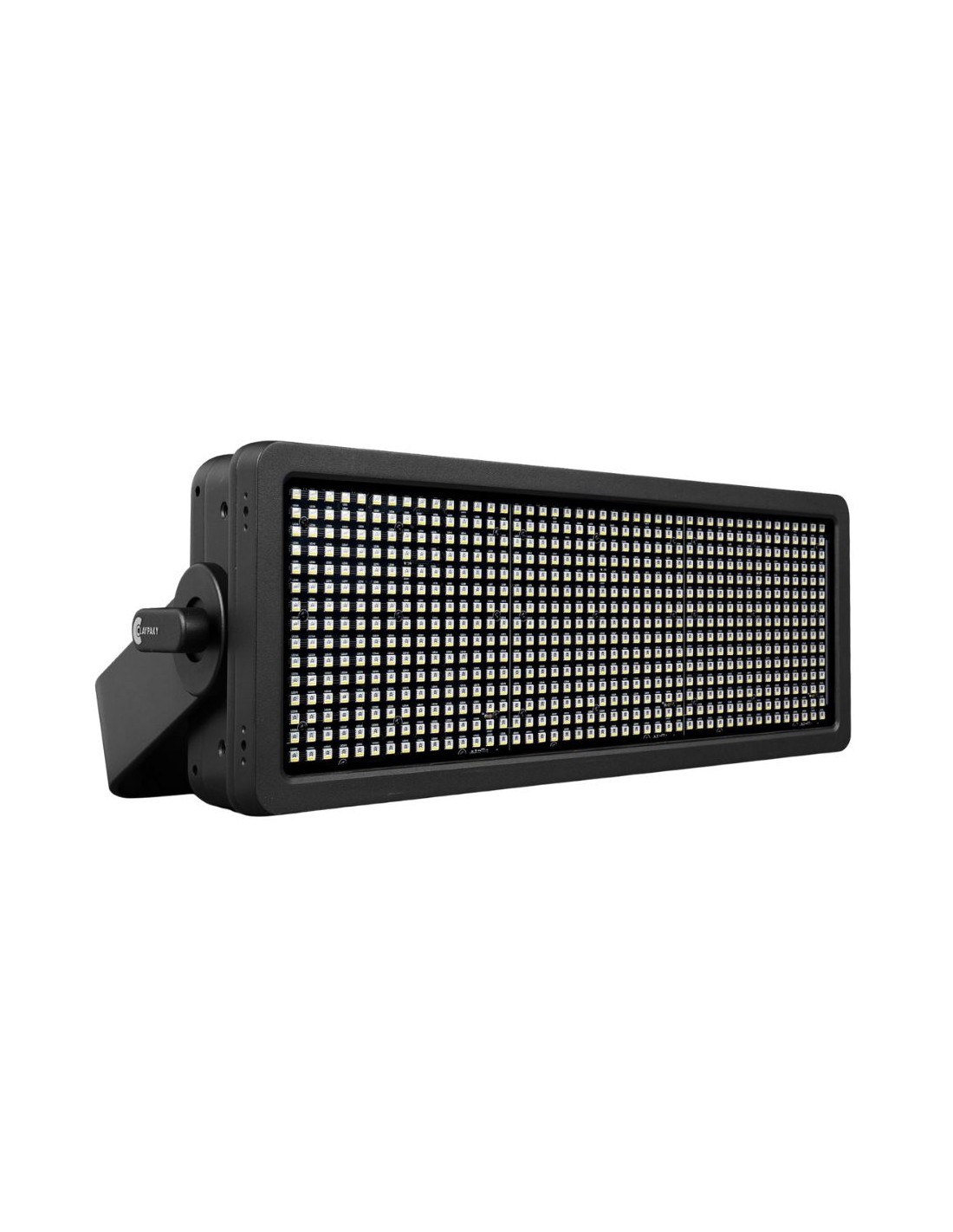

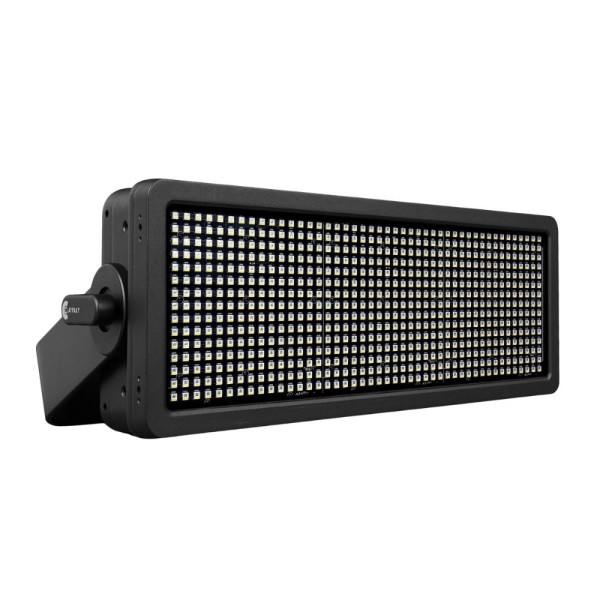

TAMBORA STORMY proiettore strobo LED statico, sorgente luminosa 675 RGBW LED SMD 2W, IP66

TAMBORA STORMY proiettore strobo LED statico, sorgente luminosa 675 RGBW LED SMD 2W, IP66

CL2026
Array ( [lastname] => [firstname] => [email] => [last_passwd_gen] => [birthday] => [newsletter] => [newsletter_date_add] => [ip_registration_newsletter] => [optin] => [website] => [company] => [siret] => [ape] => [outstanding_allow_amount] => 0 [max_payment_days] => 0 [active] => 1 [note] => [is_guest] => [id_shop] => [id_shop_group] => [id_default_group] => 1 [date_add] => [date_upd] => [reset_password_token] => [reset_password_validity] => [id] => [is_logged] => [gender] => Array ( [type] => [name] => [id] => ) [risk] => Array ( [name] => [color] => [percent] => [id] => ) [addresses] => Array ( ) ) 1

Hai bisogno di maggiori informazioni su questo prodotto?

Contattaci subito


CL2026 – Tambora Stormy di Claypaky è uno strobo pixel-mappabile compatto ed efficiente che permette di sperimentare effetti grafici fluidi, coerenza nel design modulare e controllo totale dei pixel. Con 27 segmenti di LED RGBW SMD, Tambora Stormy offre un’ampia copertura luminosa, ideale per illuminazioni a distanza ravvicinata.

Offre un controllo dinamico della temperatura colore con tecnologia Red Shift e un’apertura del fascio di 120°, perfetta per effetti strobo su grandi palchi e per un’illuminazione intensa a breve distanza.

Grazie al design resistente agli agenti atmosferici e al grado di protezione IP66, è ideale per eventi e installazioni all’aperto.

Sorgente luminosa

675 LED RGBW SMD da 2W, suddivisi in 27 segmenti

Emissione luminosa

Fino a 34.000 lm

Apertura fascio

120°

Effetti

Gestione avanzata dei livelli; dimmer elettronico; strobo elettronico @30 f/s; pixel mapping su 27 segmenti indipendenti.

Visita il sito del produttore

Applicazione
Installazione fissa
Live
Tipologia
Strobo
Outdoor
Sì
Tipo lampada
LED
Serie
Luci Statiche Led

LIGHT SOURCE

  • Source type: LED RGBW (675 pcs x 2W)
  • CRI: Up to 80
  • Lamp life expectancy: 50.000 Hrs L70*
    *It may vary depending on various factors, as type of use and environment

PHOTOMETRIC DATA

  • Lumen Output: 41367 Lm (Integrating Sphere)
  • Beam angle:
    • 108,9° : 10%
    • 65° : 50%

NOISE LEVEL

  • Controlled by: Able to control linearly the speed of the fans
  • Fixed presets:
    • Auto: 52.3 dB
    • Silent: 34.6 dB
    • Theatre: 34.9 dB
    • Constant: 52.3 dB

CONTROL and CONNECTIONS

  • Personalities:
    • Main engine: 3 modes with 10 / 32 / 26 control channels
    • Pixels engine : 2 modes with 81 / 108 control channels
  • Protocols:
    • DMX, Art-Net, sACN, RDM, Webserver
  • Connectors:
    • Locking 5 pin XLR IN/OUT
    • RJ45 IN/OUT
  • Power connector:
    • PowerCon True1 IN/OUT
  • Web Server:
    • Built In
  • CloudIO:
    • Fully compatible

DYNAMIC EFFECTS

  • Colours:
    • Advanced layers management (color, internal shape, pixel mapping (3 x 9)
    • Linear CTO 2700K to 8000K
    • Individual control of 27 LEDs
    • Pre-programmed shape selection of static and dynamic patterns,and dynamic patterns, adjustable in color, speed, direction, fade and strobe
  • Strobe:
    • Electronic strobe from 1 to 30f/sec
  • Dimmer/Shutter:
    • High resolution electronic dimmer 16Bit, 5 curves

HARDWARE and SOFTWARE

  • Long life self charging battery
  • Display Graphic LCD backlit b/w Display
  • Firmware upload from another fixture
  • Firmware Upgrade via Web Server
  • Diagnostic
  • DMX monitoring
  • Remote access through RDM

HOUSING

  • Magnesium housing
  • IP66 protection rate
  • Working in any position
  • Advanced mechanics for horizontal and vertical combination
  • Hanging system: with fast-lock omega clamps (1/4 turn) on the base
  • Optional safety chain

ELECTRICAL

  • Operating Voltage: 100–240V, 50/60 Hz
  • Power Supply: Electronic auto range with active PFC
  • Max Power consumption:
    • 720 W @100V 7.2A
    • 700 W @240V 3.2A

THERMAL SPECIFICATION

  • MAX Ambient temperature:
    • 45°C (113°F)
