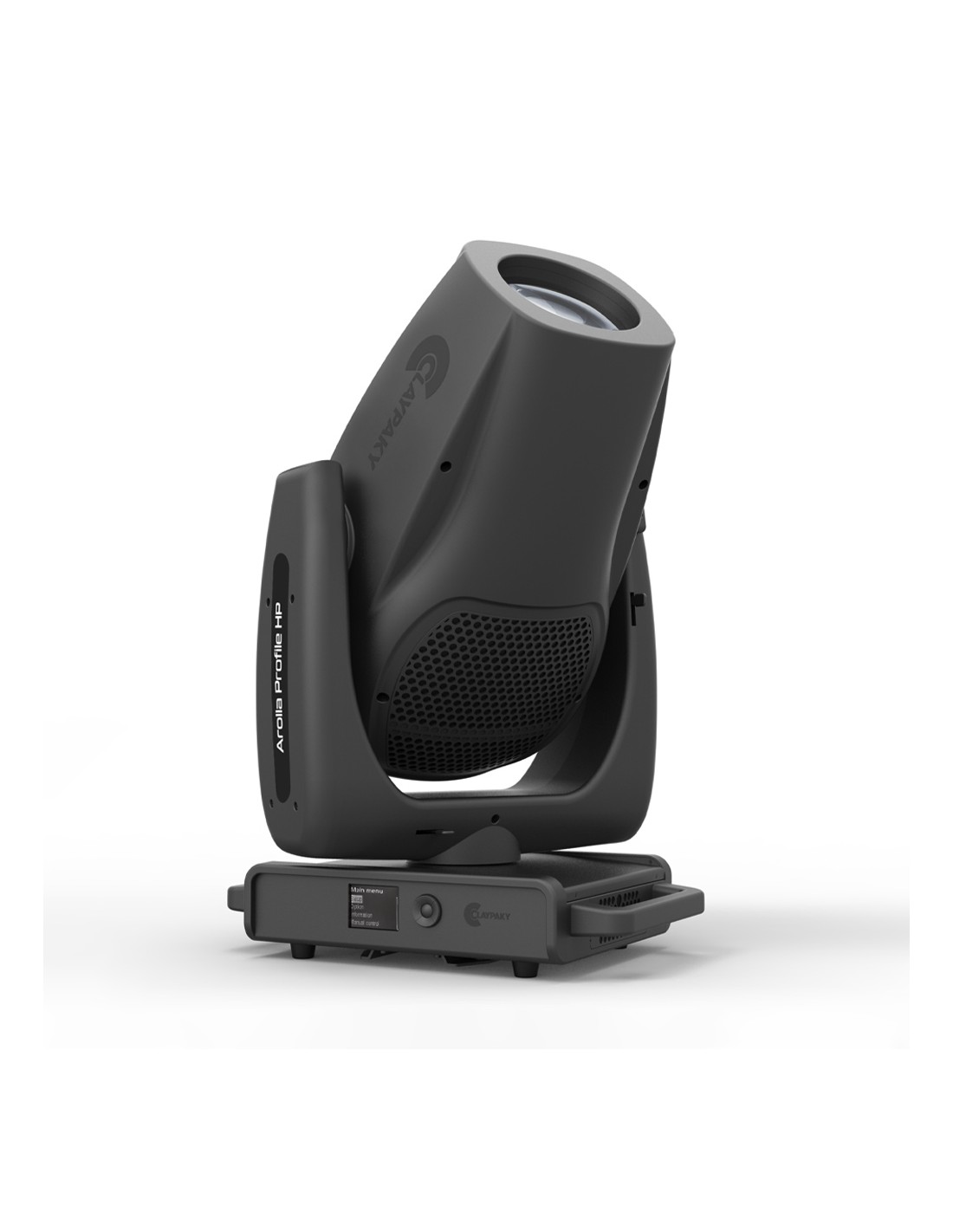

AROLLA PROFILE HP Spot Profile testa mobile ad alta potenza, LED bianchi da 1200W (44000lm)

AROLLA PROFILE HP Spot Profile testa mobile ad alta potenza, LED bianchi da 1200W (44000lm)

CL3014
Array ( [lastname] => [firstname] => [email] => [last_passwd_gen] => [birthday] => [newsletter] => [newsletter_date_add] => [ip_registration_newsletter] => [optin] => [website] => [company] => [siret] => [ape] => [outstanding_allow_amount] => 0 [max_payment_days] => 0 [active] => 1 [note] => [is_guest] => [id_shop] => [id_shop_group] => [id_default_group] => 1 [date_add] => [date_upd] => [reset_password_token] => [reset_password_validity] => [id] => [is_logged] => [gender] => Array ( [type] => [name] => [id] => ) [risk] => Array ( [name] => [color] => [percent] => [id] => ) [addresses] => Array ( ) ) 1

Hai bisogno di maggiori informazioni su questo prodotto?

Contattaci subito


I progettisti dell'illuminazione devono fare molte valutazioni sui proiettori a testa mobile che sembrano praticamente uguali, ma mancano di output e di funzionalità di cui hanno bisogno.

Claypaky Arolla Profile HP è progettato per soddisfare queste esigenze con la sua eccezionale emissione di luce e le sue caratteristiche a un prezzo sorprendentemente conveniente.

Con la sua sorgente LED bianco da 1200 Watt progettato su misura, Arolla Profile HP è una delle teste mobili LED Profile più potenti sul mercato. Il motore LED produce 52.000 lumen e il raggio dell'Arolla Profile HP è piatto e uniforme, rendendo le proiezioni nitide e ricche di colori. Questo proiettore vanta un assortimento molto completo di funzioni: uno zoom 5,8°-50,5°, miscelazione colore CMY, una ruota a sei colori che include un filtro di miglioramento CRI, CTO lineare, sei gobo rotanti, sette gobo fissi, un disco di animazione, un prisma rotante a quattro faccie, un sistema di sagomazione su quattro piani focali, un controllo del canale macro, un iris a 16 lame, filtri soft edge e flood frost, un dimmer digitale a 24 bit e un veloce effetto stop-strobe digitale.

Tutti i gobo sono realizzati in vetro dicroico ad alta definizione. Possono essere scambiati e trasformati tra loro, compresa la ruota dell'animazione, per creare trame nuove ed emozionanti.

Arolla Profile HP ha diverse modalità di funzionamento a basso rumore (1200 – 800 – 600 – Silent – Theatre) in modo da poter utilizzare l'unità praticamente ovunque.
Una delle caratteristiche essenziali che Claypaky ha curato durante la creazione di questo apparecchio è stata una significativa riduzione delle dimensioni dell'apparecchio.

Confrontando Arolla Profile HP con gli apparecchi di questa classe, è una delle teste mobili LED Profile più compatte disponibili, ma con uno dei motori LED di potenza più elevati. Oltre a movimenti agili e un potente set di funzionalità, questo dispositivo compatto porta a numerosi vantaggi per le società di noleggio in termini di manutenzione, trasporto, costo complessivo di proprietà e altro ancora. Arolla Profile HP offre un ritorno dell'investimento molto più rapido che mai.

Arolla Profile HP ha le caratteristiche per essere la luce ideale per qualsiasi spettacolo.

È stato progettato per soddisfare le esigenze di caratteristiche e dimensioni con un rapporto prestazioni/prezzo senza eguali.

Visita il sito del produttore

Applicazione
Broadcast
Installazione fissa
Live
Teatro
Tipologia
Profile
Outdoor
No
Pixel Mapping
No
Tipo lampada
LED
Serie
Teste Mobili Led

LIGHT SOURCE

  • Source type: White LED
  • Power: 1200 W
  • Color temperature: 6000 K
  • CRI: 70+ with selectable filter for CRI 88+
  • Lamp life expectancy: 40000 hrs L70*
    *It may vary depending on various factors, as type of use and environment

PHOTOMETRIC DATA

  • Zoom range: 5.8° - 50.5°
  • Lumen Output: 52000 (Integrating Sphere)
  • Front lens diameter: Ø 160mm
  • Optical system: High efficiency

NOISE LEVEL

Fixed presets:

·         Auto mode – 1200 W: 47.3 dB

·         Auto mode – 800 W: 44.1 dB

·         Const. mode – 1200W: 48.0 dB

·         Const. mode – 800W: 45.1 dB

·         Const. mode – 600W: 44.2 dB

·         Hold mode – 600W: 43.2 dB

·         Silent mode: 41.3 dB

·         Theatre mode: 40.3 dB

CONTROL and CONNECTIONS

  • Personalities: Single mode with 39 control channels
  • Protocol: DMX, Art-Net, RDM, sACN
  • Connectors: Locking 3 and 5 pin XLR IN/OUT Ethernet port RJ45 IN
  • Power connector: PowerCon True1
  • Web Server: Built In
  • CloudIO: Fully compatible

DYNAMIC EFFECTS

  • Colours:
    • Linear CMY colour mixing
    • Linear CTO
    • Fixed color wheel with 6 dichroic colors including High CRI filter
  • Gobos:
    • 1 Rotating gobo wheel with 6 HD Indexable and replaceable gobos
    • 1 Static gobo wheel with 7 HD replaceable gobos
    • Ext diam.31.9mm
    • Image diam. 24mm
    • Thickness 1.1mm
  • Framing system:
    • 4 blades with +/- 60° rotation of the full system
    • “Total Curtain" effect allowing the full blackout with each single blade
    • Built In macros
  • Frost:
    • Light frost 1° for soft diffusion
    • Heavy frost 5° for wash effect
  • Rotating Effects
    • Aluminum animation wheel with continuous rotation in both direction at variable speed
    • 4 Facets prism with rotation in both direction at variable speed
  • Iris:
    • Motorized with variable pulse and random effects
  • Movement:
    • Pan: 540° - 16bit
    • Tilt: 270° - 16bit
    • Automatic repositioning
    • Fast/Medium/Slow speed selectable by Function channel
    • Mechanical Pan/Tilt lock for safe transportation and maintenance
  • Beam:
    • Motorized Zoom and Focus
  • Dimmer/Shutter:
    - High resolution electronic Dimmer - 24 bit 5 curves
    - High speed electronic Shutter and Strobe

HARDWARE and SOFTWARE

  • Long life self-charging battery
  • Display Graphic LCD backlit b/w Display
  • Firmware upload from another fixture
  • Firmware Upgrade via Web Server
  • Diagnostic
  • DMX monitoring
  • Remote access through RDM

HOUSING

  • Aluminum and steel structure with plastic covers
  • Two side handles for transportation
  • IP20 protection rate
  • Working in any position
  • Hanging system: with fast-lock omega clamps (1/4 turn) on the base
  • Optional safety chain

ELECTRICAL

  • Operating Voltage: 100-240V, 50/60 Hz
  • Power Supply: Electronic auto range with active PFC
  • Max Power consumption: 1650VA

THERMAL SPECIFICATION

  • Max ambient temperature: 45°C (113°F)
  • Min ambient temperature: -20°C (-4°F)
  • Max temperature of the external surface: 90°C (194°F)
  • Total heat dissipation: 5636 BTU/hr ±10% / 5940 kJ/hr ±10%

SAFETY SPECS

  • Minimum distance of illuminated objects: 2.5 meters (8’ 2”)
  • Minimum distance from flammable materials: 0.2 meters (8”)
  • Protection:
    • Fuse T25A – 250V
    • Thermally protected power supply (overheating and cooling failure)
    • Forced ventilation with axial fans

COMPLIANCE

  • CE Marking (in conformity to the following):
    • 2014/35 EU Safety of electrical equipment supplied at low voltage (LVD)
    • 2014/30/EU Electromagnetic compatibility of equipment (EMC)
    • 2011/65/EU Restriction of the use of certain hazardous substances (RoHS)
    • 2009/125/EC EcoDesign requirements for Energy related Products (ErP)
  • UKCA: conforms to UK Regulations:
    • S.I. 2016 N. 1101
    • S.I. 2016 N. 1091
    • S.I. 2012 N. 3032
    • S.I. 2021 N. 745
  • cMETus Listed:
    • UL 1573:2003
    • CSA C22.2 N. 166: 2015

PACKAGING

  • Carton box + Polystyrene
  • Carton box + Foam shell
  • Flight case + Foam shell (1 position)

WEIGHT - SIZE

  • Weight: 44.7 Kg (98.5 lbs)
  • Base dimension: 312 x 510 mm 12.28 x 20.08 In
  • Distance between two fixtures: 660 mm

ACCESSORIES

  • Omega braket: 183102/805 (included)
  • ETL Power cord: CAB02B/802 (included)*
    * Cord 1.5 m (bare end with IP65 PowerConTrue1 conn.)
  • Foam shell: F21322/001 (optional)
  • Flight case 1 position: CF1013F (optional)
  • Safety Chain: 105041/003 (optional)
