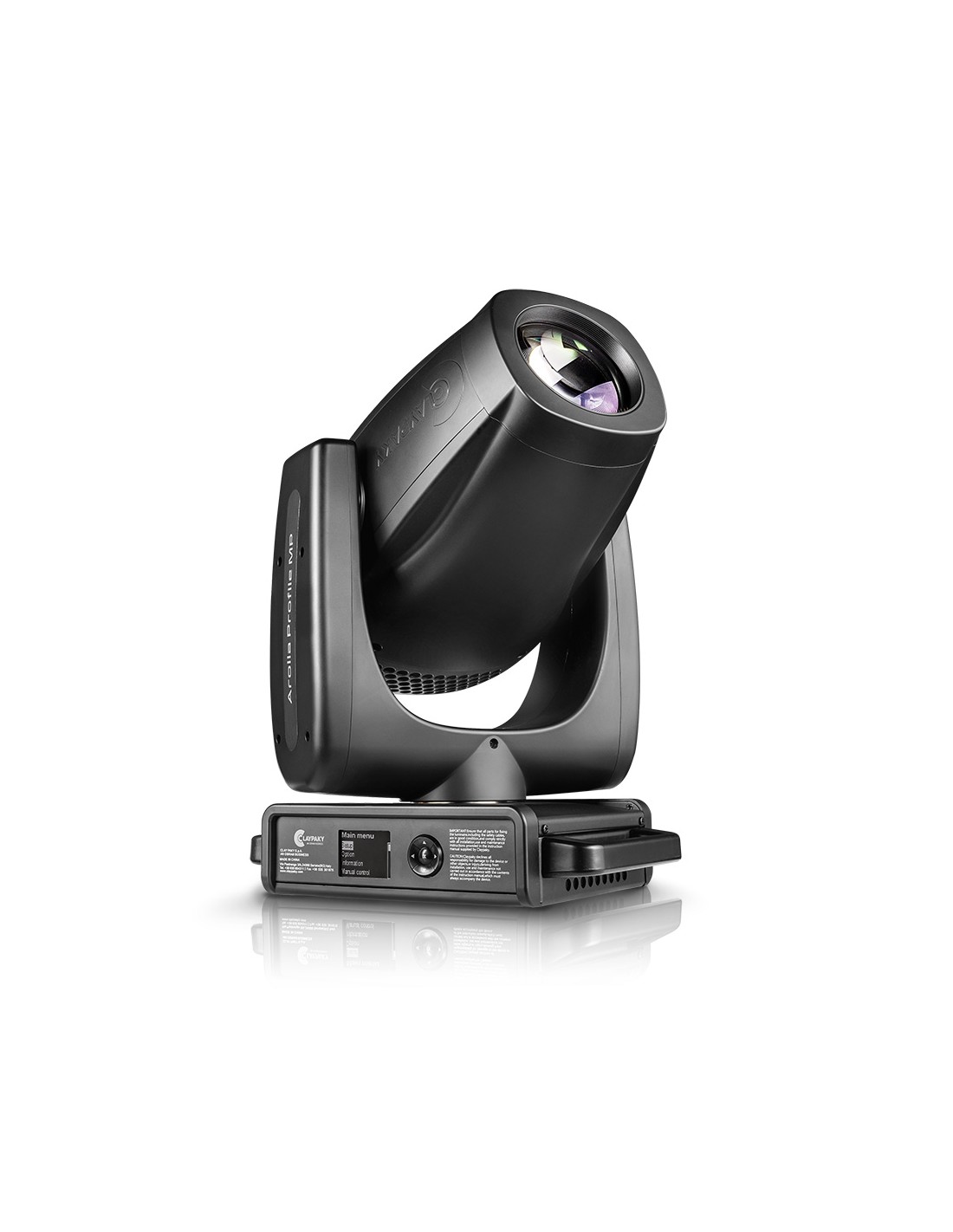

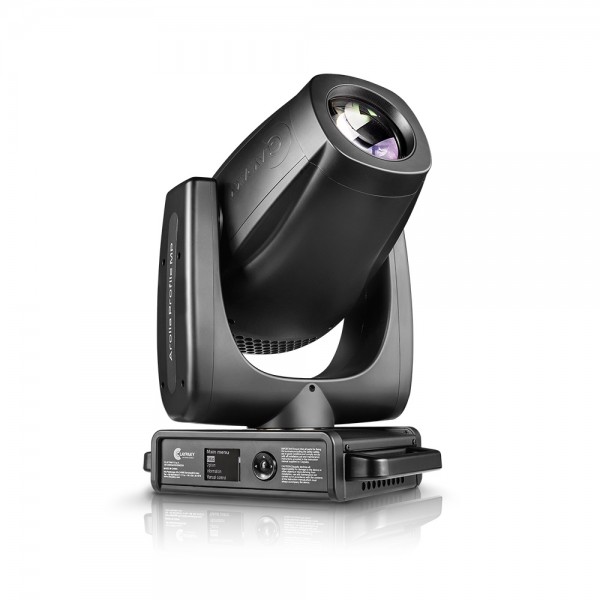

AROLLA PROFILE MP Spot Profile testa mobile ad alta potenza, engine LED bianco da 470W (22000lm)

AROLLA PROFILE MP Spot Profile testa mobile ad alta potenza, engine LED bianco da 470W (22000lm)

CL3013
Array ( [lastname] => [firstname] => [email] => [last_passwd_gen] => [birthday] => [newsletter] => [newsletter_date_add] => [ip_registration_newsletter] => [optin] => [website] => [company] => [siret] => [ape] => [outstanding_allow_amount] => 0 [max_payment_days] => 0 [active] => 1 [note] => [is_guest] => [id_shop] => [id_shop_group] => [id_default_group] => 1 [date_add] => [date_upd] => [reset_password_token] => [reset_password_validity] => [id] => [is_logged] => [gender] => Array ( [type] => [name] => [id] => ) [risk] => Array ( [name] => [color] => [percent] => [id] => ) [addresses] => Array ( ) ) 1

Hai bisogno di maggiori informazioni su questo prodotto?

Contattaci subito


AROLLA PROFILE MP è la testa mobile più piccola e leggera disponibile nella sua classe. Anche se di dimensioni ridotte, offre una potente emissione luminosa con il suo Engine LED bianco da 470 Watt (con oltre 22.000 lumen in uscita) ed è pieno delle caratteristiche che ci si aspetterebbe da un apparecchio di illuminazione molto più grande e più costoso. eSWAP è una caratteristica unica di questa serie, ovvero l'intercambiabilità del framing system con il modulo gobo del modello spot.

Questi moduli possono essere spostati da una versione all’altra e l'elettronica riconosce e configura immediatamente l'apparecchiatura per funzionare con il modulo, in modo che gli utenti non debbano apportare alcuna modifica al sistema.

Claypaky, nota per le sue ottiche di precisione, leader del settore e la riproduzione dei colori, ha dotato l'apparecchio AROLLA PROFILE MP di un sistema ottico con una gamma di zoom da 6 a 50 gradi, un sistema di miscelazione dei colori CMY che produce colori profondi e ricchi (incluso un rosso intenso senza eguali), una ruota dei colori a sette colori che include un filtro di miglioramento CRI 88+ e un CTO lineare per raggiungere le temperature di colore di cui hai bisogno.

La sorgente dell'unità è un 6000K nativo che non produce il bianco metallico che spesso limita l'applicazione dell'apparecchio e la gamma di temperature di colore.

Per un'estetica accattivante, AROLLA PROFILE MP è dotata di una lente frontale di 120 millimetri di diametro che conferisce all'unità un aspetto unico se vista di fronte. Per gli effetti, AROLLA PROFILE MP è dotato di una ruota gobo rotante con sette gobo rotanti ad alta definizione. Grazie alla nostra esclusiva tecnologia "Go-Bright", non c'è perdita di luce o cambiamento di colore quando i gobo vengono inseriti nel raggio.

L'unità include anche un sistema di sagomazione a quattro piani focali, una ruota di animazione rotante e un prisma rotante a quattro facce. Per il controllo del raggio un diaframma meccanico, un filtro frost variabile, un dimmer digitale a 24 bit con quattro curve di regolazione selezionabili dall'utente che mantiene il bilanciamento del colore in tutta la gamma di regolazione e uno stop-strobe digitale veloce.

Essendo un voltaggio universale, l'apparecchio AROLLA PROFILE MP funziona da 100 a 240 volt AC e include cinque modalità di velocità delle ventole selezionabili dall'utente: Auto – Sln – Theater – RnR – Standard.

Poiché AROLLA PROFILE MP pesa circa 25 chilogrammi, è uno dei proiettori a testa mobile più leggeri disponibili, senza rinunciare alla potenza e alle caratteristiche che spesso si trovano in proiettori molto più grandi e pesanti. La versatilità degli AROLLA PROFILE MP gli consente di adattarsi comodamente ed esibirsi in tournée, teatri o installazioni fisse.

Visita il sito del produttore

Applicazione
Broadcast
Installazione fissa
Live
Teatro
Tipologia
Profile
Outdoor
No
Pixel Mapping
No
Tipo lampada
LED
Serie
Teste Mobili Led

LIGHT SOURCE

  • Source type: White LED
  • Power:  470W
  • CRI: 70+ with selectable filter for typical CRI value up to 90
  • Colour Temperature: 6400K ±300
  • LED life expectancy: 40000Hrs L70*
    *It may vary depending on various factors, as type of use and environment

PHOTOMETRIC DATA

  • Zoom range: 6.2°- 48.8°
  • Lumen output: 22054  (Integrating Sphere)
  • Front lens: Ø 120 mm
  • Optical system: High efficiency

NOISE LEVEL

  • Fixed presets:
    • Theatre: 43.3
    • Silent: 43.9
    • RnR: 48.7
    • Constant: 49.7
    • Auto: 49.8

CONTROL and CONNECTIONS

  • Personalities: 2 modes with 37 / 39 channels
  • Protocols: DMX, Art-Net, RDM, sACN
  • Connectors:
    • Locking 5 pin XLR IN/OUT
    • RJ45 IN
  • Power connector: PowerCon True 1 IN/OUT
  • Web Server: Built In
  • Cloud/IO: Fully compatible

DYNAMIC EFFECTS

  • Colours:
    • Linear CMY colour mixing
    • Linear CTO 3000k - 6400k
    • Fixed color wheel with 7 dichroic colors including High CRI filter
  • Gobos:
    • 1 Rotating gobo wheel with 7 HD Indexable and replaceable gobos
      Ext diam.22.9mm
      Image diam. 17mm
      Thickness 1.1mm
  • Framing system:
    • 4 blades with +/- 60° rotation of the full system
    • “Total Curtain" effect allowing the full blackout with each single blade
    • Built In macros
    • The framing module is interchangeable with the optional Spot version without any setting.
  • Frost:
    • Linear heavy frost 5° for wash effect
  • Rotating Effects
    • Aluminum animation wheel with continuous rotation in both direction at variable speed
    • 4 Facets prism with rotation in both direction at variable speed
  • Iris:
    • Motorized with variable pulse and random effects
  • Movement:
    • Tilt: 270° - 16bit
    • Pan: 540° - 16bit
    • Accuracy: Resolution ± 0.17° (Range 0.54°)
    • Automatic repositioning
    • Fast/Standard speed selectable by Function channel
    • Mechanical Pan/Tilt lock for safe transportation and maintenance
  • Beam:
    • Motorized Zoom and Focus
  • Dimmer/Shutter:
    - High resolution electronic Dimmer - 24 bit, 4 curves
    - High speed electronic Shutter and Strobe

HARDWARE and SOFTWARE

  • Long life self-charging battery
  • Display Graphic LCD backlit b/w Display
  • Firmware upload from another fixture
  • Firmware Upgrade via Web Server
  • Diagnostic
  • DMX monitoring
  • Remote access through RDM

HOUSING

  • Aluminum and steel structure with plastic covers
  • Two side handles for transportation
  • IP20 protection rate
  • Working in any position
  • Hanging system: with fast-lock Omega clamps (1/4 turn) on the base
  • Optional safety chain

ELECTRICAL

  • Operating Voltage: 100-240V, 50/60 Hz
  • Power Supply: Electronic auto range with active PFC
  • Max Power consumption: 740VA

THERMAL SPECIFICATION

  • Max ambient temperature 45°C (113°F)
  • Min ambient temperature -20°C (-4°F)
  • Max temperature of the external surface 90°C (194°F)
  • Total heat dissipation: 2527 BTU/hr ±10% / 2664 kJ/hr ±10%

SAFETY SPECS

  • Minimum distance of illuminated objects: 2.5 meters (8’ 2”)
  • Minimum distance from flammable materials: 0.2 meters (8”)
  • Protections:
    • Thermally protected power supply (overheating and cooling failure)
    • Forced ventilation with axial fans
    • Fuse T10A – 250V

COMPLIANCE

  • CE Marking (in conformity to the following):
    • 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
    • 2014/30/EU - Electromagnetic Compatibility (EMC)
    • 2100/65/EU – Restriction of the use of certain hazardous substances (RoHS)
    • 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
  • UKCA conforms to UK regulations:
    • S.I. 2016 N. 1101
    • S.I. 2016 N. 1091
    • S.I. 2012 N.3032
    • S.I. 2010 N. 2617
  • cMETus LISTED:
    • UL 1573:2003
    • CSA C22.2 N.166: 2015

PACKAGING

  • Carton box + Polystyrene
  • Carton box + Foam shell
  • Flight case + Foam shell (4 positions)

WEIGHT - SIZE

  • Weight: 25 Kg (55.1 lbs)
  • Base Dimensions: 250x360mm 9.84 x 14.17 In
  • Height with vertical head (h): 593mm 23.34 In
  • Distance between two fixtures: 480mm

ACCESSORIES

  • Omega clamps: 2 x 183102/805 (included)
  • Power cord: CAB02B/802 (included)
  • Foam shell: F21324/001 (optional)
  • Flight case 4 positions: CF1008F (optional)
  • Safety Chain: 105041/003 (optional)

Kit Arolla Spot MP Gobo Module Converion: CA3007C00100 (optional)
