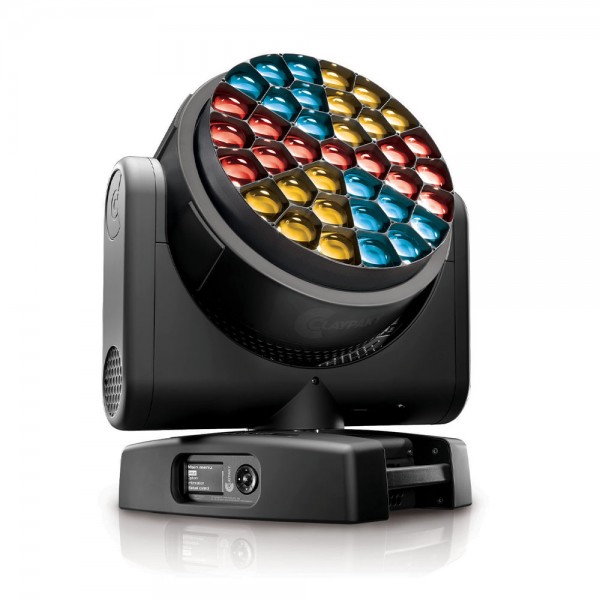

HY B-EYE K25 TEATRO Wash testa mobile 37 x 40W RGBW LEDs (1100VA), tre modalità di funzionamento

HY B-EYE K25 TEATRO Wash testa mobile 37 x 40W RGBW LEDs (1100VA), tre modalità di funzionamento

CL3015
Array ( [lastname] => [firstname] => [email] => [last_passwd_gen] => [birthday] => [newsletter] => [newsletter_date_add] => [ip_registration_newsletter] => [optin] => [website] => [company] => [siret] => [ape] => [outstanding_allow_amount] => 0 [max_payment_days] => 0 [active] => 1 [note] => [is_guest] => [id_shop] => [id_shop_group] => [id_default_group] => 1 [date_add] => [date_upd] => [reset_password_token] => [reset_password_validity] => [id] => [is_logged] => [gender] => Array ( [type] => [name] => [id] => ) [risk] => Array ( [name] => [color] => [percent] => [id] => ) [addresses] => Array ( ) ) 1

Hai bisogno di maggiori informazioni su questo prodotto?

Contattaci subito


HYper Power of Evolution: il punto di riferimento LEDwash

B-EYE ha rivoluzionato il modo di intendere l’illuminazione scenografica a LED. Il suo innovativo gruppo ottico ha esaltato l'uniformità e l'efficienza dell'emissione luminosa. La lente frontale rotante e la possibilità di controllo individuale dei singoli LED hanno reso possibili spettacolari proiezioni caleidoscopiche e suggestivi effetti "eye candy". Un effect engine sofisticato ha semplificato l’uso corrente di effetti-macro altrimenti difficili da programmare.

Queste innovazioni tecnologiche rendono il B-EYE un prodotto versatile, che è contemporaneamente LED Wash dalle grandi performance, perfetto Beam light e proiettore di effetti grafici spettacolari, pluripremiato e copiato da innumerevoli produttori negli anni.

Claypaky propone anche HY B-EYE, che offre le stesse soluzioni vincenti, potenziate e arricchite. HY B-EYE è più potente, più efficiente, più intelligente, più versatile e più silenzioso che mai!

HY B-EYE K25 TEATRO è una versione speciale di HY B-EYE K25, progettato per gli ambienti che necessitano la massima silenziosità di funzionamento, senza sacrificare la brillantezza dei colori.

PESO: 27,5 Kg
DIMENSIONI (LxWxH): 488 mm x 387 mm x 482 mm

Visita il sito del produttore

Tipologia
Wash
Outdoor
No
Pixel Mapping
SI
Tipo lampada
LED
Serie
Teste Mobili Led

LIGHT SOURCE:

  • Source type:
    • RGBW LEDs
  • Power:
    • 40W (x37)
  • Color Temperature:
    • 6000 K.
  • LED life expectancy:
    • 50000 hrs.
      *It may vary depending on various factors, such as the type of use and environment

PHOTOMETRIC DATA:

  • Zoom Range:
    • 4°-60°
  • Lumen output:
    • 16.100Lm (integrating sphere)
  • Optical System:
    • Patented 37 lens system

NOISE LEVEL:

  • Fixture: HY B Eye K25:
    • Fixed preset:
      • Auto mode standard: 46.5 dB
      • Auto mode quiet: 47.0 dB
      • Stationary: 33.5 dB
  • Fixture: HY B Eye K25 Teatro:
    • Fixed presets:
      • Auto mode super silent: 35.0 dB
      • Auto mode silent 36.0 dB
      • Auto mode standard: 39.0 dB

CONTROL and CONNECTIONS:

  • Personalities:
    • Basic Engine: 21/22/35/36
    • Pixel engine: 111/148
  • Protocols:
    • DMX , Art Net, sACN, RDM
  • Connectors:
    • Locking 3 / 5 pin XLR IN/ OUT
    • RJ45 IN
  • Power connector:
    • PowerCon True1 IN/OUT
  • Web server:
    • Built in
  • CloudIO:
    • Fully compatible
    • On field calibration for color consistency

DYNAMIC EFFECTS:

  • Colors:
    • Built in macros with enhanced pixel control
    • Preset colors
    • Dedicated channel for color temperature setting
    • White CT Emulation 2500 8000K
    • RGBW auto tuning to lamp CT Emulation
    • Tungsten Lamp Emulation
  • Rotating effect:
    • Bi directional rotating front lenses
  • Movement:
    • Tilt: 210°
    • Pan: 540°
    • Automatic repositioning
    • Mechanical Pan/Tilt lock for safe transportation and maintenance
  • Beam:
    • Motorized zoom
  • Dimmer/Shutter:
    • High resolution electronic dimmer 24 bit, 4 curves
    • High speed electronic shutter and strobe:
      • Slow strobe: 1 flash/sec
      • Fast strobe: 25 flash/sec

HARDWARE and SOFTWARE:

  • Long life self-charging battery
  • Display Graphic LCD backlit  B/W Display
  • Firmware upload from another fixture
  • Firmware Upgrade via Web Server
  • Diagnostic
  • DMX monitoring
  • Remote access through RDM

HOUSING:

  • Aluminium and steel structure with plastic covers
  • Two side handles for transportation
  • IP20 protection rate
  • Working in any position
  • Hanging system: with fast lock Omega clamps (1/4) turn on the base
  • Optional safety chain

ELECTRICAL:

  • Working in any position.
  • Hanging system: with fast-lock omega clamps (1/4 turn) on the base.
  • Optional safety chain.

ELECTRICAL:

  • Optical voltage: 100 240V, 50/60 Hz
  • Power Supply: Electronic auto range with active PFC
  • MAX power consumption: 1250 VA @230 Vac 50 Hz

THERMAL SPECIFICATION:

  • Max ambient temperature: 40°C (113°F)
  • Max temperature of the external surface: 90°C (194°F)
  • Total heat dissipation: 5329 BTU/hr ±10% / 5616 kJ/hr ±10%

SAFETY SPECIFICATIONS:

  • Min. distance of illum. objs: 0.2 m ( 8’’)
  • Min. dist. from flamm. mat.: 0.2 m ( 8’’)
  • Protections:
    • Thermally protected power supply (overheating and cooling)
    • Forced ventilation with axial fans

COMPLIANCE:

  • CE Marking (in conformity to the following)
    • 2014/35/EU Safety of electrical equipment supplied at low voltage ( LVD)
    • 2014/30/EU Electromagnetic compatibility (EMC)
    • 2011/65/EU Restriction of the use of certain hazardous substances (RoHS)
    • 2009/125/EC EcoDesign requirements for Energy related Products (ErP)
  • UKCA conforms to UK regulations:
    • S.I. 20 16 N. 1101
    • S.I. 2016 N. 1091
    • S.I. 2012 N. 3032
    • S.I. 20 10 N. 2617
  • cETLus LISTED:
    • UL 1573:2003
    • CSA C22.2 N.166:2015

PACKAGING

  • Carton box + Polystyrene
  • Carton box + Foam shell
  • Flight case + Foam shell (2 positions)

WEIGHT - SIZE

  • Weight: 27.5 Kg ( 60.6 lbs)
  • Base dims: 329 x 387 mm 12.95 x 15.24 In
  • Height with horiz head (h): 590 mm 23.23 In
  • Dist. b/t 2 fixt: 600 mm

ACCESSORIES

  • Omega bracket: 2x183102-805 (Included)
  • ETL Power: CAB03D-802 (Included) *
    * Cord 1.5 m (bare end with IP65 PowerConTrue1 conn.)
  • Flight case (4 pos): CF1001F (Optional)
  • Foam shell: F21313-001 (Optional)
  • Safety Chain: 105041-003 (Optional)
  • Clamp: C21070 (Optional)
