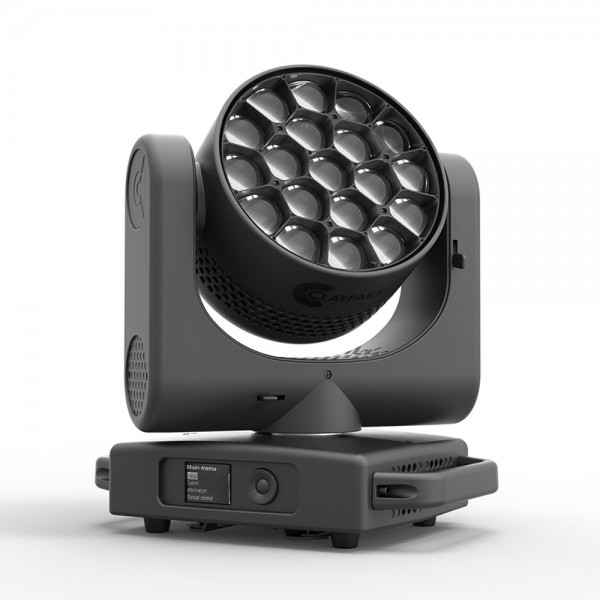

MIDI-B testa mobile wash, 19 x 40W RGBW Osram Ostar LED

MIDI-B testa mobile wash, 19 x 40W RGBW Osram Ostar LED

CL3011
Array ( [lastname] => [firstname] => [email] => [last_passwd_gen] => [birthday] => [newsletter] => [newsletter_date_add] => [ip_registration_newsletter] => [optin] => [website] => [company] => [siret] => [ape] => [outstanding_allow_amount] => 0 [max_payment_days] => 0 [active] => 1 [note] => [is_guest] => [id_shop] => [id_shop_group] => [id_default_group] => 1 [date_add] => [date_upd] => [reset_password_token] => [reset_password_validity] => [id] => [is_logged] => [gender] => Array ( [type] => [name] => [id] => ) [risk] => Array ( [name] => [color] => [percent] => [id] => ) [addresses] => Array ( ) ) 1

Hai bisogno di maggiori informazioni su questo prodotto?

Contattaci subito


I proiettori di questa classe sono da sempre molto richiesti perché soddisfano molteplici esigenze di light show, dai set più piccoli ai più grandi spettacoli. Con così tante scelte disponibili, questa categoria di prodotti si presta a prezzi altamente competitivi ma anche a prestazioni standardizzate. Ciò rende difficile per i clienti decidere quale prodotto scegliere senza sacrificare le prestazioni.

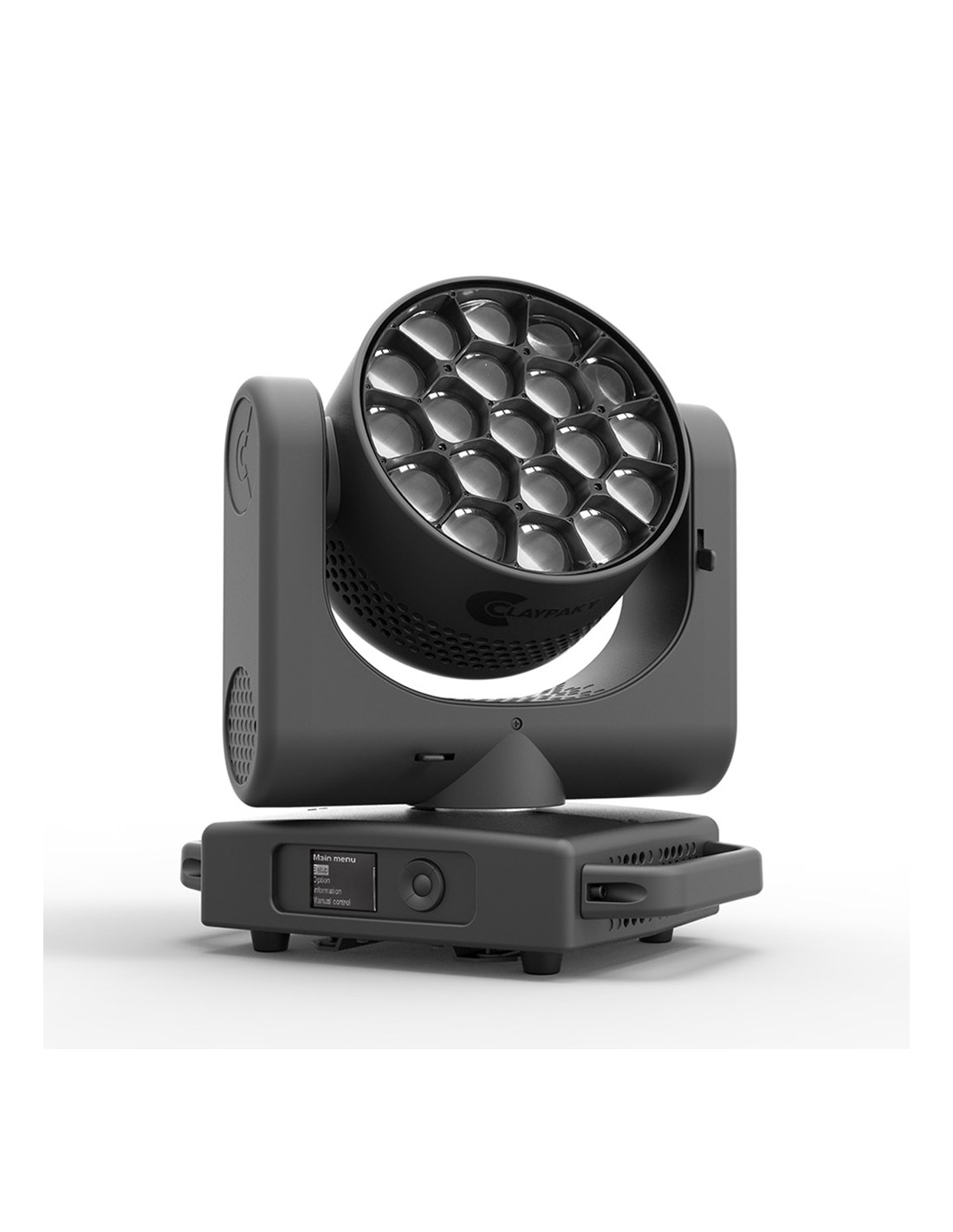

Il MIDI-B è un nuovo proiettore a testa mobile a LED basato con 19 LED Osram RGBW da 40 Watt, gli stessi utilizzati nei celebrati HY B-EYE e MINI-B.

La sua escursione zoom da 4° a 50° consente un'ampia varietà di applicazioni.

All'angolo più stretto, il raggio prodotto è ultra-denso e concentrato, ideale per effetti aerei. Alle aperture più ampie, il MIDI-B si trasforma in una washlight eccezionale e dal fascio uniforme, che può sostituire proiettori molto più pesanti e voluminosi. I 19 LED sono disposti in tre anelli controllabili indipendentemente, che possono essere utilizzati per effetti luminosi di retroilluminazione.

Macro colori, controllo della temperatura del colore da 2500K a 8000K, dimmer a 16 bit con quattro curve, strobo a 25 flash al secondo, accesso Ethernet completano le funzionalità professionali del MIDI-B.

Visita il sito del produttore

Applicazione
Broadcast
Live
Tipologia
Wash
Outdoor
No
Pixel Mapping
No
Tipo lampada
LED
Serie
Teste Mobili Led

LIGHT SOURCE TYPE

  • 19x Osram 40W RGB + W LEDs.
  • 19x Osram 40W RGB + WW LEDs.
  • 1900 lumen each LED
  • LED life expectancy: 50000Hrs ( 20000Hrs L70* )
    *It may vary depending on various factors, as type of use and environment

PHOTOMETRIC DATA

  • Zoom range: 4°- 50°
  • 11401 Lumen Output (Integrating Sphere)
  • High efficiency optical system

NOISE LEVEL

  • Theatre Fan mode: 34.5 dBA
  • SLN Fan Mode: 35.2dBA
  • Auto Fan Mode: 39.2 dBA
  • Constant Fan mode: 41.2 dBA

CONTROL and CONNECTIONS

  • Personalities: 4 modes with 17/21/25/37 control channels
  • Control Protocol: DMX, Art-Net, RDM, sACN
  • DMX and RDM connectors: Locking 5 pin XLR IN/OUT
  • Ethernet port: RJ45 IN
  • Power connector: PowerCon True1 IN/OUT
  • Built In Web Server

DYNAMIC EFFECTS

  • Colors:
    • Linear RGB + W
    • Linear CTO (2500K to 8000K color temperature control)
      • Linear RGB + WW
      • Linear CTO (6500K to 2500K color temperature control)
    • Preset Macro colors
    • Three independently controlled LED rings
  • Movement:
    • Tilt: 270° - 16bit
    • Pan: 540° - 16bit
    • Automatic repositioning
    • Fast/Standard speed selectable by Function channel
    • Mechanical Pan/Tilt lock for safe transportation and maintenance
  • Beam:
    • Motorized Zoom
    • Automatic repositioning when DMX is disconnected
  • Dimmer/Shutter:

    • High resolution electronic Dimmer - 24 bit (5 curves)
    • High speed electronic Strobe

HARDWARE and SOFTWARE

  • Long life self-charging battery
  • Display Graphic LCD backlit b/w Display
  • Firmware upload from another fixture
  • Firmware Upgrade via Web Server
  • Diagnostic
  • DMX monitoring
  • Remote access through RDM
  • CloudIO compatibility

HOUSING

  • Aluminum and steel structure with plastic covers
  • Two side handles for transportation
  • IP20 protection rate

WORKING POSITION

  • Working in any position
  • Hanging system: with fast-lock omega clamps (1/4 turn) on the base
  • Optional safety chain

ELECTRICAL

  • Operating Voltage: 100-240V, 50/60 Hz
  • Power Supply: Electronic auto range with active PFC
  • Max Power consumption: 830VA

THERMAL SPECIFICATION

  • Max ambient temperature 45°C (113°F)
  • Min ambient temperature -20°C (-4°F)
  • Max temperature of the external surface 90°C (194°F)
  • Total heat dissipation: 2596 BTU/hr ±10% / 2736 kJ/hr ±10%

SAFETY SPECS

  • Minimum distance of illuminated objects: 0,2 m (8’’)
  • Mininum distamce from flammable material: 0,2 m (8’’)
  • Protections:
    • Thermally protected power supply (overheating and cooling failure)
    • Forced ventilation with axial fans
    • Fuse T10A – 250V

COMPLIANCE

  • CE marking (in conformity to the following):
    • 2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)
    • 2014/30/EU – Electromagnetic Compatibility (EMC)
    • 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
    • 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
  • UKCA conforms to UK regulations:
    • S.I. 2016 N. 1101
    • S.I. 2016 N.1091
    • S.I. 2012 N.3032
    • S.I. 2010 N.2617
  • cMETus Listed:
    • UL 1573:2003
    • CSA C22.2 N.166:2015

PACKAGING

  • Carton box + Polystyrene
  • Carton box + Foam shell
  • Flight case + Foam shell (4 positions)

WEIGHT - SIZE

  • 17 Kg (37.5 lbs)
  • 252x390mm (base dimension) – 471mm with vertical head (h)
  • Distance between two fixtures 500mm

ACCESSORIES

  • Omega clamps: 2x183102/805 (included)
  • Power cord: CAB03D/802 (included)
  • Foam shell: F21321/001 (optional)
  • Flight case (4 pos.): CF1010F (optional)
  • Safety Chain: 105041/003 (optional)
