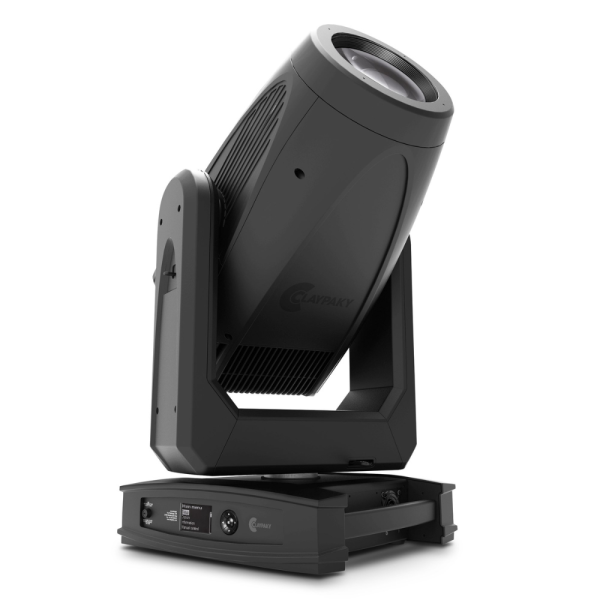

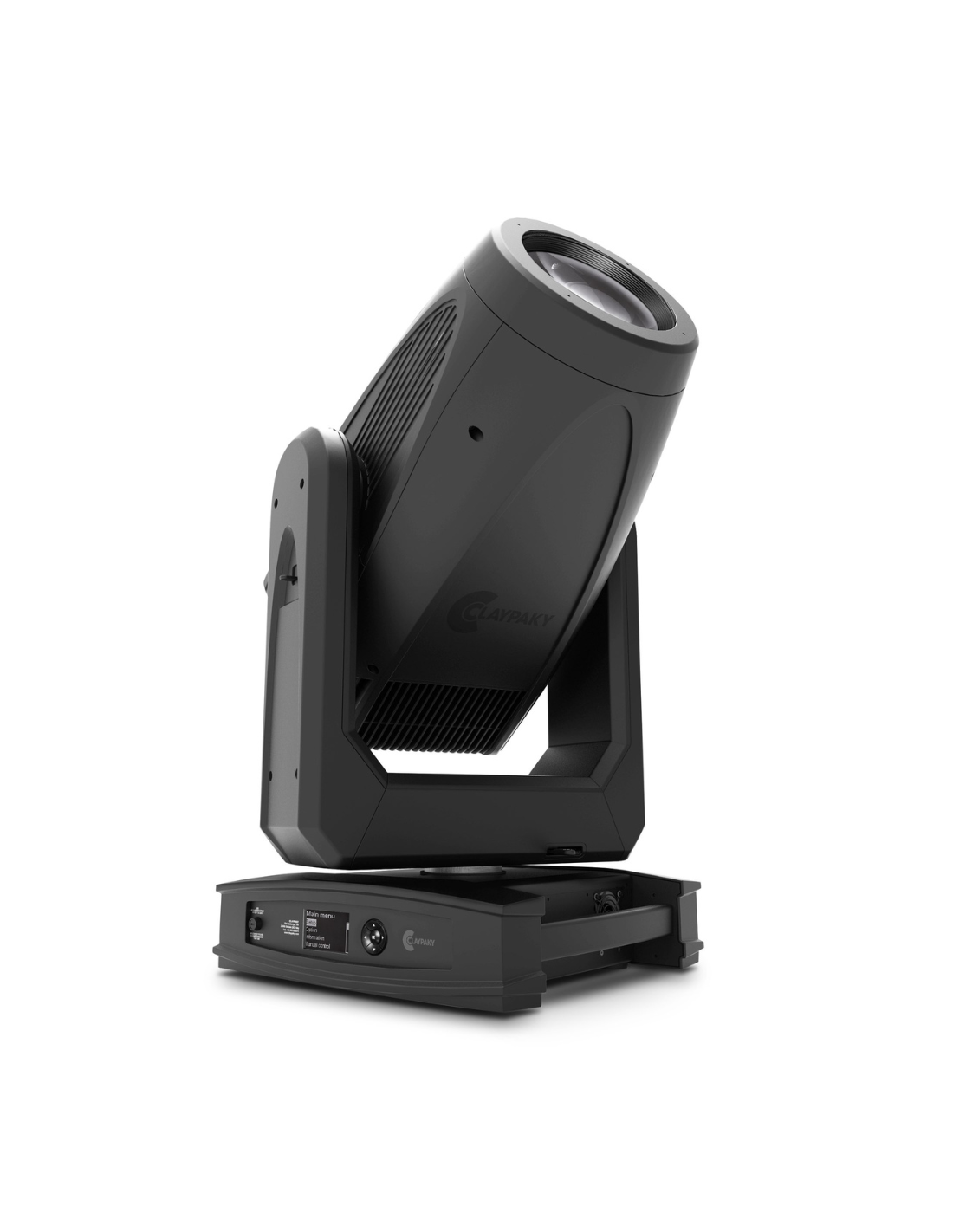

RHAPSODYA testa mobile, engine LED multicolore RGBAL da 1200W, zoom lineare 6°- 60°

RHAPSODYA testa mobile, engine LED multicolore RGBAL da 1200W, zoom lineare 6°- 60°

CL3024
Array ( [lastname] => [firstname] => [email] => [last_passwd_gen] => [birthday] => [newsletter] => [newsletter_date_add] => [ip_registration_newsletter] => [optin] => [website] => [company] => [siret] => [ape] => [outstanding_allow_amount] => 0 [max_payment_days] => 0 [active] => 1 [note] => [is_guest] => [id_shop] => [id_shop_group] => [id_default_group] => 1 [date_add] => [date_upd] => [reset_password_token] => [reset_password_validity] => [id] => [is_logged] => [gender] => Array ( [type] => [name] => [id] => ) [risk] => Array ( [name] => [color] => [percent] => [id] => ) [addresses] => Array ( ) ) 1

Hai bisogno di maggiori informazioni su questo prodotto?

Contattaci subito


CL3024 – Rhapsodya di Claypaky si presenta come un dispositivo LED multispettrale RGBAL all'avanguardia e a bassa rumorosità, progettato con la massima cura per un’ampia gamma di applicazioni: tournée, eventi live, teatro e produzioni televisive. È gestito da un algoritmo firmware sviluppato internamente e appositamente concepito.

Oltre alle funzionalità innovative già presenti in Sinfonya, da cui Rhapsodya eredita l’attenzione per la qualità ottica e la gestione del colore, come ACCUFRAME™, il sistema di sagomatura a doppio piano focale che garantisce una precisione fino a 40 volte superiore rispetto ai sistemi tradizionali, e TONEDOWN™, che assicura un funzionamento ultra-silenzioso con soli 27 dB di emissione sonora, Rhapsodya integra anche Absolute Position Control per un controllo avanzato di PAN e TILT, e LINEGUARD, un nuovo sistema frost con doppia coppia di lame.

A queste si aggiungono nuove tecnologie che portano Rhapsodya a un livello superiore:

AccuTune, un sistema di controllo preciso del motore LED multicolore, basato su un algoritmo di nuova generazione che garantisce colori intensi e vibranti, ottimizzati per il palcoscenico e la televisione.

COLORSTRING, un controllo individuale dei LED che consente un’elevata definizione grafica e la creazione di effetti luce complessi e dinamici.

Il dispositivo è inoltre dotato di un Sistema Ottico Proprietario di ultima generazione, che offre un'eccezionale escursione dello zoom da 6,2° a 63,3°.


ALTRE CARATTERISTICHE:

Sorgente Luminosa
Motore LED RGBAL da 1200W

Emissione Luminosa
24.000 lm (in sfera integratrice)

Escursione dello Zoom
Da 6,2° a 63,3°

Effetti
Filtri colore digitali; Controllo individuale delle strisce LED (ColorString); 2 ruote con 6 gobo rotanti HD intercambiabili ciascuna; Ruota animazioni con inserimento e rotazione su assi X/Y; Prisma a 4 facce con rotazione bidirezionale a velocità variabile; Espansione della ruota colori (con opzioni aggiuntive di rosso intenso, verde intenso e blu intenso)

Visita il sito del produttore

Applicazione
Broadcast
Installazione fissa
Live
Teatro
Tipo lampada
LED
Serie
Teste Mobili Led

LIGHT SOURCE TYPE

  • LED RGBAL
  • Power: 1200W
  • CRI:  Up to 94
  • Colour Temperature: 2500 to 10.000K
  • Lamp life expectancy: 40.000 Hrs
    *It may vary depending on various factors, as type of use and environment

PHOTOMETRIC DATA

  • Zoom range: 6,2° to 63,3°
  • 24.000 Lumen Output (Integrating Sphere)
  • Front lens diameter: 180mm
  • Optical system: 14 high efficiency lenses

NOISE LEVEL

  • Controlled by:
    • Able to control linearly fans speed
  • Fixed presets:  27dBA/ 30dBA / 35dBA
  • Fanless mode: with reduced output

CONTROL and CONNECTIONS

  • Personalities: Three (3) modes with  62 / 54 / 46 control channels  +  separate control of the engine string (20 channels)
  • Control Protocol: DMX, Art-Net, RDM, sACN, CRMX lumen Radio (Optional)
  • Connectors:
    • Locking 5 pin XLR IN/THRU
    • 2 x RJ45 IN/OUT
  • Power connector: PowerCon True1 IN
  • Web Server: built-in
  • CloudIO:
    • Fully compatible
    • On-field calibration for color consistency

DYNAMIC EFFECTS

  • Colours:
    • RGBAL control
    • Virtual CTO
    • +/- Green correction
    • Adjustable CRI
    • Digital Color Filters
  • Gobos:
    • 2 rotating gobo wheels with 6 HD Indexable and replaceable gobos: Ext diam. 32.8 mm Image diam. 27 mm Thickness 1.1mm
  • Framing system:
    • 4 blades with +/- 60° rotation of the full system, 2 focal planes
    • “Total Curtain" effect allowing the full blackout with each single blade
  • Frost:
    • Linear heavy frost 5° for wash effect (Fixed)
    • Light frost 1° for soft diffusion (interchangeble)
  • Rotating Effects:
    • 1 Aluminum animation wheel with continuous rotation in both direction at variable speed - XY movement
    • 1 Four-Facet  prism with rotation in both directions at variable speed
  • Iris:
    • 16 blades motorized with variable pulse and random effects
  • Movement:
    • Tilt: 270° - 16bit
    • Pan: 540° - 16bit
    • Accuracy: Resolution ± 0.12° (± 0° 7' 12") Range 0.24° (0° 14' 24")
    • Absolute position
    • Automatic repositioning
    • Mechanical Pan/Tilt lock for safe transportation and maintenance
    • Tilt safety brake system
  • Beam:
    • Motorized Zoom and Focus
    • Autofocus
  • Dimmer/Shutter:
    • High speed electronic shutter and Strobe
    • High resolution dimmer 24 bit, 3 curves

HARDWARE and SOFTWARE

  • Long life self-charging battery
  • Display Graphic LCD backlit b/w display
  • Firmware upload from another fixture
  • Firmware Upgrade via Web Server
  • Diagnostic
  • DMX monitoring
  • Remote access through RDM
