CONNECT 3004D
Array ( [lastname] => [firstname] => [email] => [last_passwd_gen] => [birthday] => [newsletter] => [newsletter_date_add] => [ip_registration_newsletter] => [optin] => [website] => [company] => [siret] => [ape] => [outstanding_allow_amount] => 0 [max_payment_days] => 0 [active] => 1 [note] => [is_guest] => [id_shop] => [id_shop_group] => [id_default_group] => 1 [date_add] => [date_upd] => [reset_password_token] => [reset_password_validity] => [id] => [is_logged] => [gender] => Array ( [type] => [name] => [id] => ) [risk] => Array ( [name] => [color] => [percent] => [id] => ) [addresses] => Array ( ) ) 1

Hai bisogno di maggiori informazioni su questo prodotto?

Contattaci subito

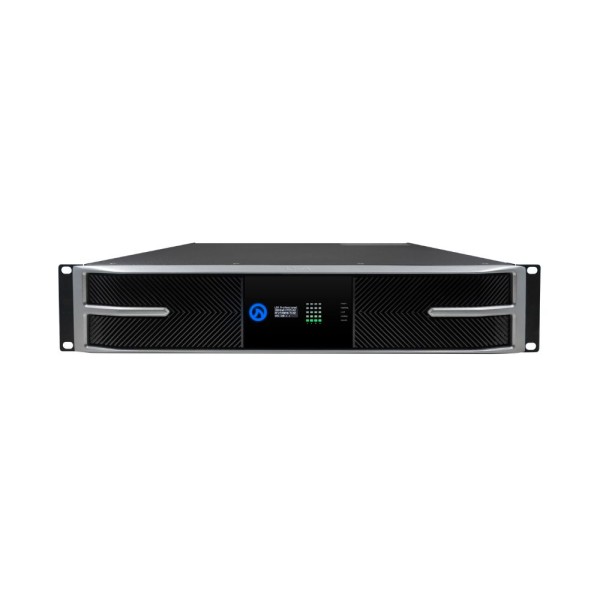

CONNECT 3004D di LEA Professional è un amplificatore a 4 canali con 3000 watt per canale.
Questo modello della famiglia CONNECTSERIES è disponibile nelle versioni NETWORK CONNECT e DANTE CONNECT, entrambe con supporto alla connettività Dante e AES67
È la soluzione ideale per installazioni audio di grandi dimensioni.

Sono disponibili tre modalità di connessione: è possibile utilizzare il Wi-Fi Access Point integrato, collegarsi alla rete Wi-Fi della struttura oppure connettersi a qualsiasi rete locale tramite la porta FAST Ethernet, utilizzando un cavo Cat5 o Cat6.
E poi c'è il Cloud. Le serie Network CONNECTSERIES e DANTE CONNECTSERIES sono le prime serie di amplificatori professionali a integrare la connettività Cloud.


Visita il sito del produttore

Applicazione
Installazione fissa
Numero canali
4
Tipologia ingressi
AES
Analogico
Dante
Serie
Dante Connect
AUDIO SPECIFICATIONS
INPUTS
Analog: 4 Balanced Inputs with user selectable 26 dB and 34 dB input sensitivity
THD+N
0.1% (20Hz to 20kHz)
FREQUENCY RESPONSE
20Hz to 20kHz, +/- 0.5 dB @ 4Ω, 8Ω, 70V, 100V, -2.5dB @ 20kHz at 2Ω
SIGNAL TO NOISE LEVEL
105dB (20Hz to 20kHz referenced to 8Ω)
CROSSTALK
70dB (20Hz to 20kHz)
AMPLIFIER OUTPUT CLASSIFICATION
Class D with Proprietary Smart Power Bridge Technology allowing bridged output functionality on 2 channels without sacrificing an amplifier channel
DSP
DSP ARCHITECTURE
Analog Devices Sharc 96kHz DSP Processor with 32-bit Core with Sample Rate Converters
INPUT MATRIX
Routable matrix; any input to any output with primary and secondary input priority
CROSSOVERS
Advanced DSP with Linear Phase Brickwall FIR Crossovers and up to 48dB/Octave IIR Filters (Linkwitz Riley and Butterworth)
PARAMETRIC EQ
8 Band Parametric EQ per channel
OUTPUT DELAY
4 seconds per channel
OUTPUT PROTECTION
DC, VHF, and AC Mains Protection, Overtemp and Current Limiter, fan fault detection
USER ADJUSTABLE LIMITING
Peak Voltage and RMS Voltage
LOAD MONITORING
Realtime Load Monitoring and Pilot Tone Detection from Internal or External Sources
CONTROL, MONITORING, NETWORKING
USER INTERFACE
Web Browser User Interface, 3rd Party API control, or Cloud control
EXTERNAL I/O
External I/O In: Toggles Remote On/Off
External I/O Out: Indicates Amplifier Health
OPERATION
AC MAINS
100VAC - 240VAC +/- 15% 50Hz or 60Hz
POWER SUPPLY
Universal Switch Mode Power Supply
PHYSICAL SPEC
DIMENSIONS (L X W X H)
Product: 17.88” x 19” x 2U (362mm x 482mm x 2U) (362mm x 482mm x 2U)
Shipping: 22” x 22.75” x 8” (578mm x 203mm x 559mm)
WEIGHT
26lbs / 11.8kg | Shipping: 30 lbs / 13.6 kg
COOLING
Front to Rear Variable Fan Speed Cooling
Fan Noise at idle is 50dB @ 1m
Fan Noise at 50% is 57dB @1m
Fan Noise at full speed is 63dB @ 1m
