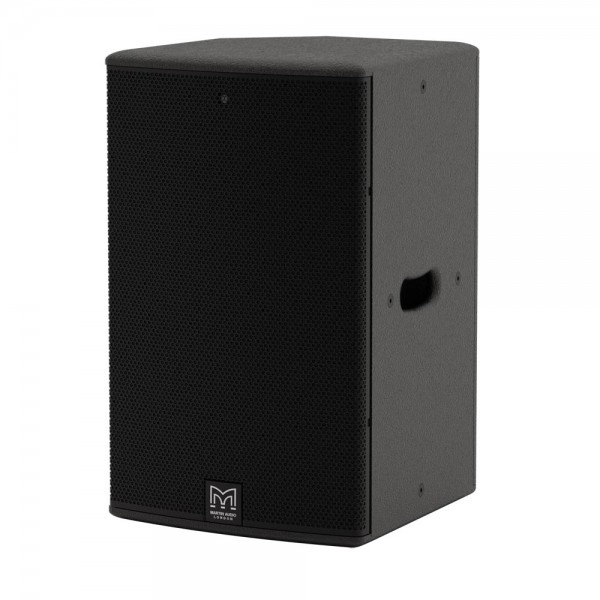

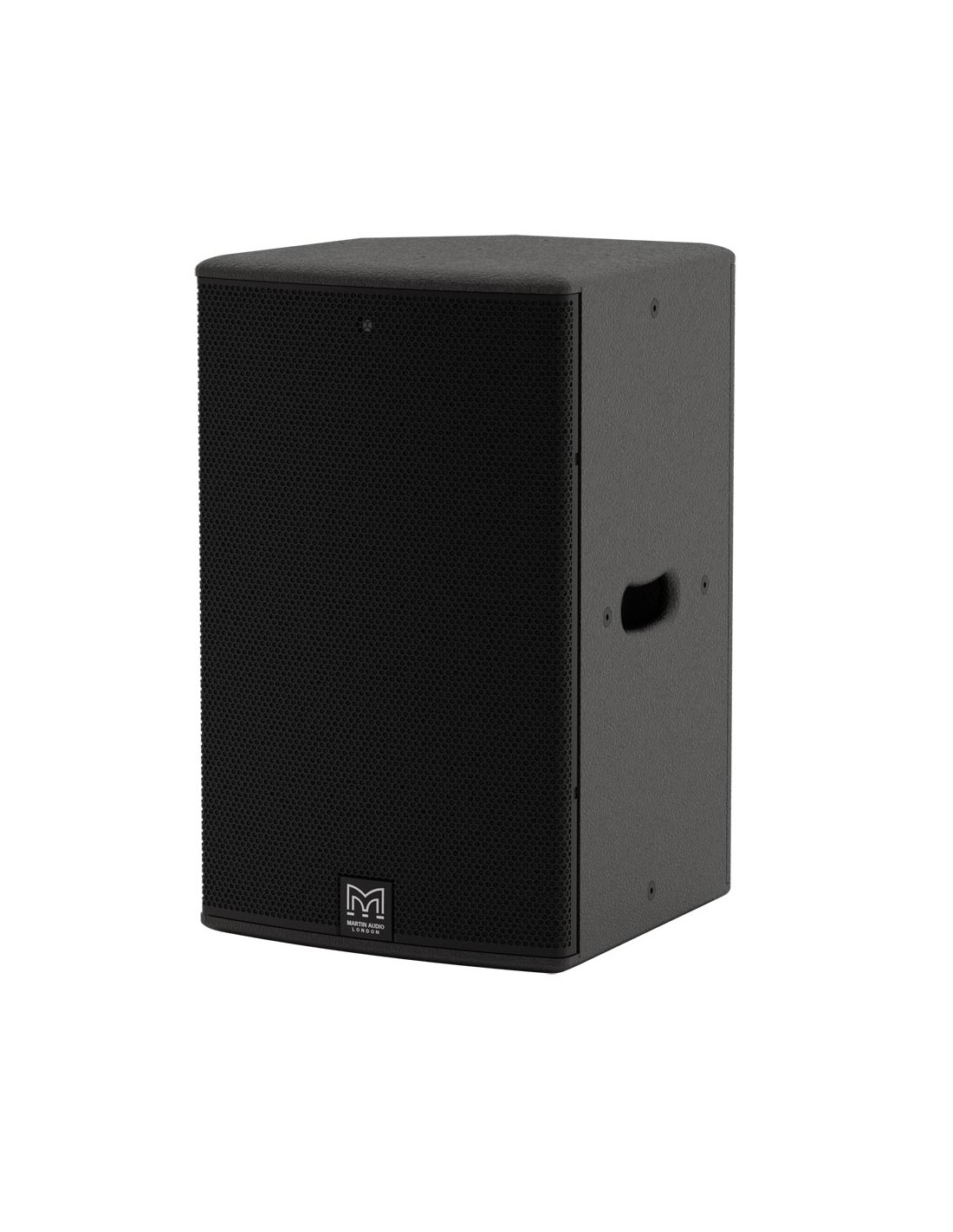

Diffusore compatto full range, 1x12 coassiale dispersione differenziale, amplificato.

ACOUSTICS

TYPE: Compact, Coaxial Differential Dispersion powered two-way system

FREQUENCY RESPONSE (1): 62Hz – 20kHz ±3dB, -10dB @ 50Hz

DRIVER:

- LF: 12” (300mm)/2.5” (63.5mm) voice coil, long excursion, shared ferrite motor system with HF

- HF: 1” (25mm) exit/1.7” (44mm) voice coil, polyimide dome compression driver

INPUT SENSITIVITY: -30dBu for 100dB SPL

MAXIMUM SPL (2): 122dB continuous / 128dB peak

DISPERSION: 110˚-60˚ horizontal, 60˚ vertical (user-rotatable)

CROSSOVER: 1.5kHz Active LR8 with low latency HF FIR equalisation, Balance presets for pole mount/ pole mount with sub/ stage monitor

MODULE AUDIO INPUT

CONNECTORS: Female XLR input, male XLR link output, Dante Audio Neutrik® Ethercon

ANALOGUE INPUT IMPEDANCE: 20 kΩ balanced to ground

MAXIMUM ANALOGUE INPUT LEVEL: 24.6 Vpp (+21dBu), over voltage protected

INTERNAL PROCESSING:

- Multi-channel DSP, programmable via TCP/IP using VU-Net software

- PEQ/shelving filters

- Up to 48dB/Oct HPF

- Low latency HF FIR filters

- Up to 200ms input delay

- Pre-set selection via rear panel switch

NETWORK

CONNECTORS: 2xNeutrik® Ethercon

PROTOCOL: TCP/IP and UDP/IP

AMPLIFIER

TYPE: 2 channel switch-mode, class D, Bridged Tied Load + 1 channel switch-mode, class D

PEAK OUTPUT POWER: 2500W total, 2000W LF, 500W HF

AVERAGE EFFICIENCY: 89%

COOLING: External convection cooled, with internal fan

MAXIMUM AMBIENT TEMPERATURE: 40°C (104°F) for full output

POWER SUPPLY

TYPE: Switch mode, fixed frequency with PFC

AC INPUT OPERATING RANGE: 85 – 265V ~ AC, 50 - 60Hz

POWER FACTOR: > 0.98

NOMINAL POWER CONSUMPTION: 160W

MAINS CONNECTOR: Neutrik® Powercon True1

MECHANICAL

ENCLOSURE: Extensively braced multi-laminate plywood.

FINISH: Textured black PU coating.

PROTECTIVE GRILLE: HEX perforated mild steel with protective zinc plating and black powder coat finish. Backed with black grille cloth.

FITTINGS:

- Top hat for pole mounting

- 15 x M8 mounting points

- Two side pocket handles

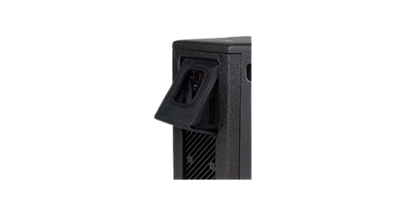

- Optional weather protection cowl

IP RATING: IP24 factory option available

DIMENSIONS:

- (W) 359mm x (H) 580mm x (D) 373mm

- (W) 14.13in x (H) 22.83in x (D) 14.69in

WEIGHT: 28kg (61.6lbs) excluding Transit cover

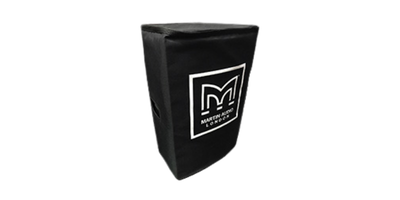

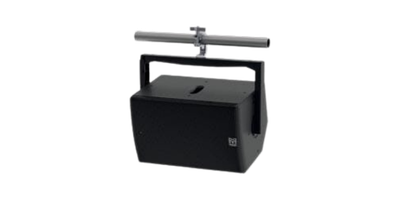

ACCESSORIES: Transit Cover, Optional wall, yoke and universal brackets
