Diffusore compatto full range, 1x15 coassiale dispersione differenziale, amplificato.

Diffusore compatto full range, 1x15 coassiale dispersione differenziale, amplificato.

Colore
Array ( [lastname] => [firstname] => [email] => [last_passwd_gen] => [birthday] => [newsletter] => [newsletter_date_add] => [ip_registration_newsletter] => [optin] => [website] => [company] => [siret] => [ape] => [outstanding_allow_amount] => 0 [max_payment_days] => 0 [note] => [is_guest] => 0 [id_shop] => [id_shop_group] => [id_default_group] => 1 [date_add] => [date_upd] => [reset_password_token] => [reset_password_validity] => [vatNumber] => [sdi] => [pec] => [rl_delayedpayment] => [id] => [is_logged] => [gender] => Array ( [type] => [name] => [id] => ) [risk] => Array ( [name] => [color] => [percent] => [id] => ) [addresses] => Array ( ) ) 1

Hai bisogno di maggiori informazioni su questo prodotto?

Contattaci subito


CDD-LIVE 15 è un diffusore compatto full range con tecnologia coassiale a dispersione differenziale, amplificato e provvisto di network DANTE. CDD-LIVE 15 è l’ideale per tutte le applicazioni che richiedono tecnologia al top da un singolo diffusore.

Il potente altoparlante a dispersione coassiale differenziale comprende un driver LF da 15” (380mm) con bobina da 3” (75mm) e un driver a compressione HF da 1.4” (35mm) con un diaframma in titanio puro da 3” (75mm). Grazie a una max SPL di 132dB peak a 1 metro, è la soluzione ideale per eventi touring di medie dimensioni, teatri e applicazioni live sound portatili, così come installazioni di altissimo livello e stage monitor.

Visita il sito del produttore

Applicazione
Live
Tipologia diffusore
Point Source
Amplificato/Passivo
Attivo
Outdoor
No

ACOUSTICS

TYPE: High-output, Coaxial Differential Dispersion powered two-way system

FREQUENCY RESPONSE (1): 55Hz – 20kHz ±3dB, -10dB @ 45Hz

DRIVER:

- LF: 15” (380mm)/3” (75mm) voice coil, long excursion, shared ferrite motor system with HF

- HF: 1.4” (36mm) exit/3” (75mm) voice coil, titanium dome compression driver

INPUT SENSITIVITY: -30dBu for 100dB SPL

MAXIMUM SPL (2): 126dB continuous / 132dB peak

DISPERSION: 100˚-60˚ horizontal, 60˚ vertical (user-rotatable)

CROSSOVER: 1.5kHz Active LR8 with low latency HF FIR equalisation, Balance presets for pole mount/ pole mount with sub/ stage monitor

MODULE AUDIO INPUT

CONNECTORS: Female XLR input, male XLR link output, Dante Audio Neutrik® Ethercon

ANALOGUE INPUT IMPEDANCE: 20 kΩ balanced to ground

MAXIMUM ANALOGUE INPUT LEVEL: 24.6 Vpp (+21dBu), over voltage protected

INTERNAL PROCESSING:

- Multi-channel DSP, programmable via TCP/IP using VU-Net software

- PEQ/shelving filters

- Up to 48dB/Oct HPF

- Low latency HF FIR filters

- Up to 200ms input delay

- Pre-set selection via rear panel switch

NETWORK

CONNECTORS: 2xNeutrik® Ethercon

PROTOCOL: TCP/IP and UDP/IP

AMPLIFIER

TYPE: 2 channel switch-mode, class D, Bridged Tied Load + 1 channel switch-mode, class D

PEAK OUTPUT POWER: 2500W total, 2000W LF, 500W HF

AVERAGE EFFICIENCY: 89%

COOLING: External convection cooled, with internal fan

MAXIMUM AMBIENT TEMPERATURE: 40°C (104°F) for full output

POWER SUPPLY

TYPE: Switch mode, fixed frequency with PFC

AC INPUT OPERATING RANGE: 85 – 265V ~ AC, 50 - 60Hz

POWER FACTOR: > 0.98

NOMINAL POWER CONSUMPTION: 160W

MAINS CONNECTOR: Neutrik® Powercon True1

MECHANICAL

ENCLOSURE: Extensively braced multi-laminate plywood.

FINISH: Textured black PU coating.

PROTECTIVE GRILLE: HEX perforated mild steel with protective zinc plating and black powder coat finish. Backed with black grille cloth.

FITTINGS:

- Top hat for pole mounting

- 15 x M8 mounting points

- Two side pocket handles

- Optional weather protection cowl

IP RATING: IP24 factory option available

DIMENSIONS:

- (W) 427mm x (H) 696mm x (D) 422mm

- (W) 16.81in x (H) x 27.42in (D) 16.61in

WEIGHT: 37kg (81.4lbs) excluding Transit cover

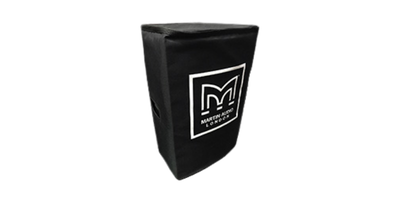

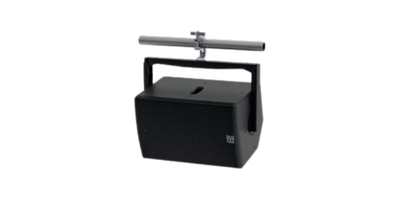

ACCESSORIES: Transit Cover, Optional yoke and universal brackets
