Ricevitore miniaturizzato UHF 2 canali True Diversity, fino a 790 MHz switching-range

Ricevitore miniaturizzato UHF 2 canali True Diversity, fino a 790 MHz switching-range

MCR54-DUAL
Array ( [lastname] => [firstname] => [email] => [last_passwd_gen] => [birthday] => [newsletter] => [newsletter_date_add] => [ip_registration_newsletter] => [optin] => [website] => [company] => [siret] => [ape] => [outstanding_allow_amount] => 0 [max_payment_days] => 0 [active] => 1 [note] => [is_guest] => [id_shop] => [id_shop_group] => [id_default_group] => 1 [date_add] => [date_upd] => [reset_password_token] => [reset_password_validity] => [id] => [is_logged] => [gender] => Array ( [type] => [name] => [id] => ) [risk] => Array ( [name] => [color] => [percent] => [id] => ) [addresses] => Array ( ) ) 1

Hai bisogno di maggiori informazioni su questo prodotto?

Contattaci subito


MCR54 DUAL è un sistema ricevitore wireless per microfoni a vera diversità doppia per telecamere, disponibile in configurazione modulare autonoma o da incasso. Ciascun ricevitore ha un filtro dedicato e può essere sintonizzato indipendentemente.



CARATTERISTICHE PRINCIPALI:

Ricevitore a true diversity con 2 canali e sintonizzazione indipendente (4 schede ricevitore!)

Compattezza eccezionale e alta robustezza

Uscita audio analogica e digitale DSP (AES3)

Banda fino a 790 MHz nell'intervallo 470/1260 MHz

Filtri di front-end multibanda di nuova generazione:

Filtro sintonizzabile elettronicamente ad alto Q nell'intervallo 470-800 MHz

Primo filtro a banda stretta

Secondo filtro a banda stretta

Modalità di funzionamento DSP-FM a banda larga e a banda stretta (selezionabile tramite software):

La banda stretta consente un'efficienza di banda superiore al 50%

La banda stretta offre una sensibilità e un'immunità al rumore extra di circa 3 dB

VCO ad estremamente basso rumore con scansione dello spettro ultraveloce per una configurazione ottimale rapida e semplice

Display OLED ad alto contrasto

Scansione automatica e programmazione del trasmettitore tramite infrarossi e Bluetooth 5

Basato su DSP per una flessibilità estrema e operazioni multi-compansione

Monitoraggio e controllo tramite USB C o Bluetooth 5 (lungo raggio) su Wisycom Manager v3.2.1 (software per computer)

Connettori dell'antenna posteriori e adattatore audio micro e alimentazione

VISITA IL SITO DEL PRODUTTORE

Tipologia radiomicrofono
Sistema microfonico wireless
Serie
Ricevitori rack modulari
Frequency ranges MCR54 B1: 470 ÷ 800 + 961÷1000 + 1045÷1075 MHz (UK)
MCR54 B2: 470 ÷ 800 + 823÷832 + 940÷960 MHz (USA/EU)
MCR54 B3: 470 ÷ 800 + 806÷809 + 1240÷1260 MHz (JP)
MCR54 B5: 470 ÷ 800 + 462÷465 + 806÷810 MHz (JP)
Switchable channels 2400 user programmable frequencies, organized in 40 groups of 60 channels
Switching-window up 790 MHz, each receiver can be tuned independently.
Frequencies microprocessor controlled frequency synthesizer circuit, with 5 kHz minimum step.
The frequencies can be easily PC reprogrammed with USB C or Bluetooth 5 (long range)
Frequency error < ± 2.5 ppm, in the rated temperature range
Modulation FM mono, wideband or narrowband IFB (SW selectable)
Peak deviation ±54 kHz (wideband), ± 40 kHz (narrowband)
Antenna input impedance 50 ohm sma type (SWR < 1:2; typ. 1:1.4)
Sensitivity 2 μV ( 6 dBμV), for SND/N > 58 dB;
5 μV (14 dBμV), for SND/N > 98 dB
in the whole switching-window*
Amplitude response < 0.5 dB (for RF input signal:6 dBµV ÷ 100 dBµV)
Adjacent chan. selectivity > 60 dB typical (for channel spacing ≥ 400 kHz in WB and ≥ 250 kHz in NB)
Spurious emissions < 2 nW (typical = 0.1 pW)
Noise Reduction system ENR / ENR-1.2 (Wisycom Extended-NR) , noise optimized
ENC / ENC-1.2 (Wisycom Extended-NC), voice optimized & with reduced pre-emphasis
ENS (for live application)
Others, compatible with most systems, thru an internal DSP emulation of SA572, SA575 and Rms envelope compander chip set, fully user programmable
AF bandwidth 30 Hz ÷ 20 kHz (wideband), 30 Hz ÷ 17 kHz (narrowband)
Frequency response ± 1 dB in the 30 Hz ÷ 20 kHz range (wideband),
± 1 dB in the 30 Hz ÷ 17 kHz (narrowband)
Distortion 0.3 % typical
SND/D ratio (Analogue) 120 dB typical*
SND/D ratio (Digital) > 125 dB typical
Audio output Electronically balanced on 5 pin mini-XLR Female connector analogue or digital (SW selectable)
Digital sample rate AES3 @ 48 kHz
Monitor output headphone 3.5 mm jack socket
Managing interface USB C, Bluetooth 5 (long range)
LEDs 2 multicolour RGB LEDs to easy indicates Power & Bluetooth 5
2 multicolour RGB LEDs to easy indicates the audio status of the 4 RX
Display OLED 128x64 (white)
Powering - External = 6 ÷ 18 Vdc (3 W max)
- Autonomous. = with optional BCA 54 Battery Module
Power consumption 1,85 Watt max (with 2 active receivers), 1,5 Watt max (with 1 active receiver)
Temperature range -10 ÷ +55 °C
Dimensions 104 x 87,6 x 25 mm (H x W x D)
Weight 285g
*RMS value, 22 Hz / 22 kHz, unweighted

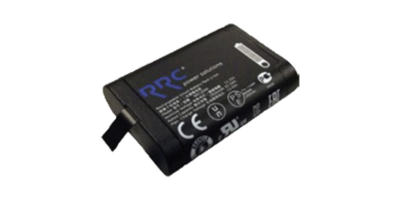

LBP500

PACCO BATTERIA LITIO STANDARD 10.80V / 3.35AH / 36.20WH PER BCA54

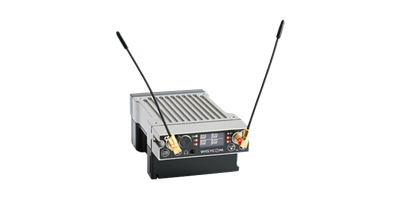

BCA54

PANNELLO POSTERIORE "STAND-ALONE" CON MODULO DI ALIMENTAZIONE A BATTERIA INTEGRATO PER MCR54 E MCR54-DUAL

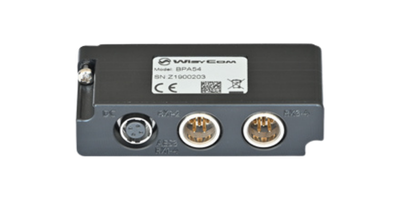

BPA54

PANNELLO POSTERIORE "STAND-ALONE" PER MCR54 E MCR54-DUAL, 2 USCITE SU CONNETTORE MINI XLR-5PIN MASCHIO

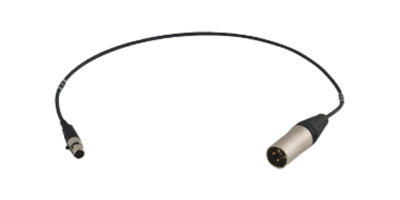

CAM50-41

CAVO AF LUNGHEZZA 50 CM, 1 CONNETTORE MINI XLR-5F / 1 CONNETTORERE XLR-3 MASCHIO, PER CONNESSIONE DI INGRESSO AES3

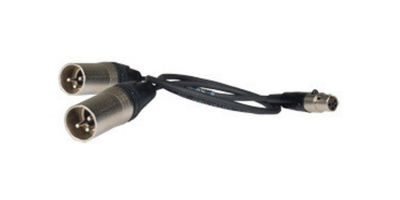

CAM50-3

CAVO AF LUNGHEZZA 50 CM, 1 CONNETTORE MINI XLR-5F / 2 CONNETTORERI XLR-3 MASCHIO
