Trasmettitore impugnatura UHF, larghezza di banda 232MHz, Wideband e Narrowband selezionabile

Codice Prodotto: MTH410

Hai bisogno di maggiori informazioni su questo prodotto?

Contattaci subito

MTH410 è un trasmettitore progettato appositamente per applicazioni professionali di microfoni wireless.

È molto facile e rapido da utilizzare grazie al display OLED e al selettore a rotella (joggle) e ai 2 pulsanti per la rapida configurazione di guadagno e canale.

È stato appositamente progettato per garantire robustezza contro il rumore e l'auto-interferenza grazie a un doppio amplificatore di potenza e a un circuito speciale di "cancellazione dell'intermodulazione".

Il MTH410 beneficia della tecnologia LINEAR, che consente una suddivisione delle frequenze a passi EQUIDISTANTI senza intermodulazione.

È l'unico trasmettitore palmare in grado di cambiare la modulazione tramite software, funzionando come Wideband o Narrowband.

VISITA IL SITO DEL PRODUTTORE

Tipologia radiomicrofono: Sistema microfonico wireless
Serie: Trasmettitori impugnatura UHF

Frequency ranges	B7 option: 470 ÷ 663 MHz B3 option: 510 ÷ 698 MHz B2 option: 566 ÷ 798 MHz B8 option: 940 ÷ 960 MHz B6 option: 960 ÷ 1160 MHz B9 option: 1240 ÷ 1260 MHz
Switchable channels	2400 managed in 40 groups ofr 60 frequencies completely user customizable
Switching-window	Up to 232 MHz, depending on band (see Variants below)
Frequencies	Quartz PLL frequency synthesizer circuit (25 kHz step)
Frequency error	± 2.5 ppm, in the rated temperature range
RF Power	switchable typ. 10 or 20 mW / 50 mW /100 mW note: in some countries high power can be disabled, for local norm!
Modulation	wideband/narrowband FM, with pre-emphasis
Nominal deviation	±40 kHz Wideband, ±25 kHz Narrowband
Peak deviation	±56 kHz Wideband, ±35 kHz Narrowband
Spurious emissions	< 2 nW
Telemetry feature	TX transmits also a digitally modulated sub-carrier, suitable for: tone-squelch operating remote battery monitoring optional PTT (push to talk) operation
Noise Reduction system	ENR (Wisycom Extended-NR), with independent Attack- and Recovery-time, noise optimized ENC (Wisycom Extended-NC), with independent Attack- and Recovery-time, voice optimized & with reduced pre-emphasys
AF bandwidth	55 Hz ÷ 20 KHz (1dB), Wideband with LPF at 20kHz 55 Hz ÷ 15 KHz (1dB), Narrowband with LPF at 15kHz
Distortion	< 0.3 % (0.15 % typ.)
SND/D ratio (Analogue)	typ. 115 dB (A)rms with 40 kHz deviation typ. 121 dB (A)rms with 56 kHz deviation Wideband typ. 115 dB (A)rms with 25 kHz deviation typ. 121 dB (A)rms with 35 kHz deviation Narrowband
Audio input connector	directly interchangeable microphone-heads
Audio input level	60 dB adjustable range from -54 to +6 dBu at peak deviation (1 kHz), adjustable in 1 dB steps
Max input level	+6 dBu
Max sound pressure	150 dB SPL (0,5% THD), with MCM30x condenser-heads
Managing interface	IrDA
LED	bicolor led (red & green) on wireless power switch: Wireless transmission status: GREEN on/off Battery lifetime status: GREEN steady (> 25%), slowly blinking (< 25%), quickly blinking (<12%) Modulation peek (if activated): RED Ptt status: RED if active
Battery lifetime indication	8 steps : 7 bars (100%-87%-75%-63-50%-38%-25%) and “empty bar” quickly blinking (12% remaining)

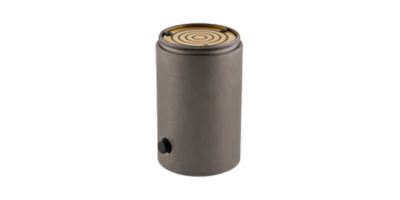

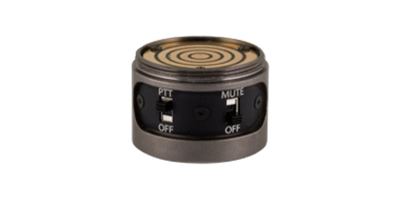

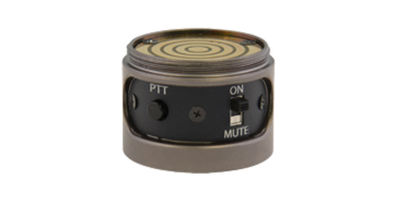

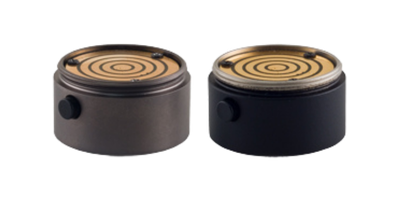

PTT function	with optional PTT accessory
Display	High contrast OLED (Organic light-emitting diode) white display (128 x 32 pixels)
Power supply	2 AA size cell (Alkaline, rechargeable NiMH or Lithium)
Power consumption	230mA@ 3V average (display off, 100mW power)
Battery life	with Alkaline: up to 14 hours @ 10mW, approx. 12 hours @ 20mW, approx. 10 hours @ 50mW , approx. 7 hours @ 100mW or @ 20mW Intermod Free “20L” level with Lithium: approx. 7 hours @ 100mW
Temperature range	-10 ÷ +55 °C
Dimensions	183 x 33 mm (length x diameter) without microphone-head
Weight	Approx. 150g only body, 280 g with head MCM306, 330g with head MCM306 and batteries
