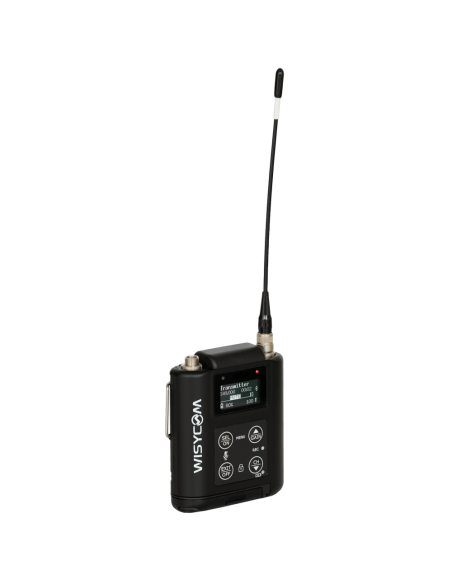

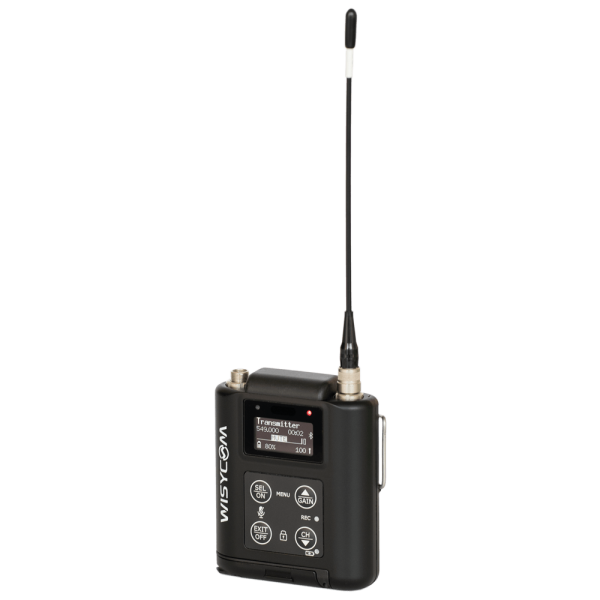

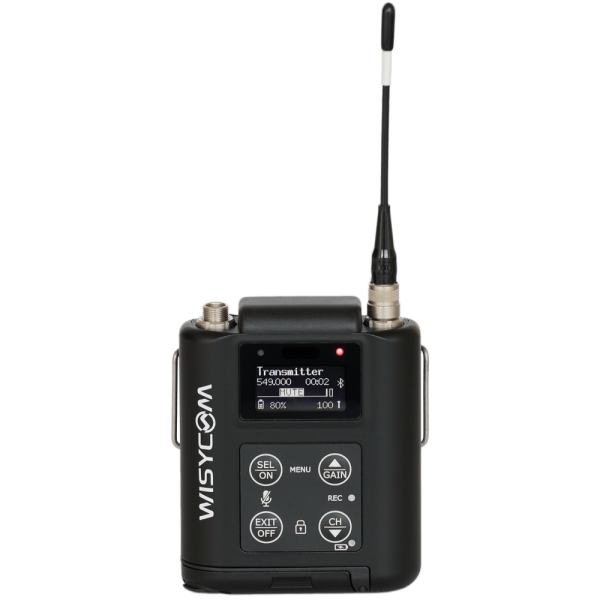

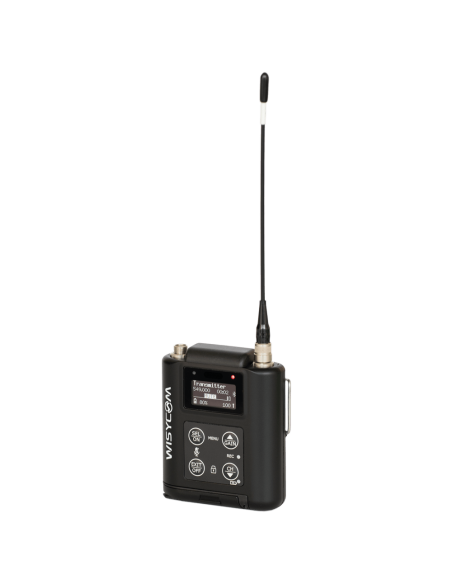

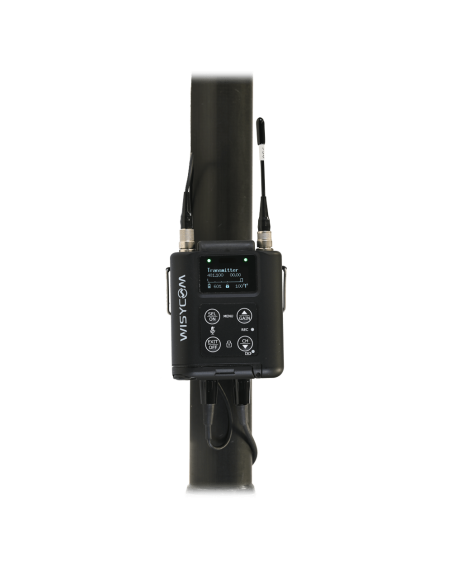

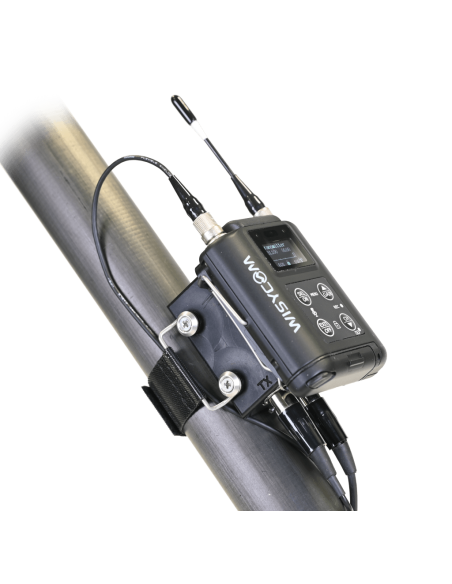

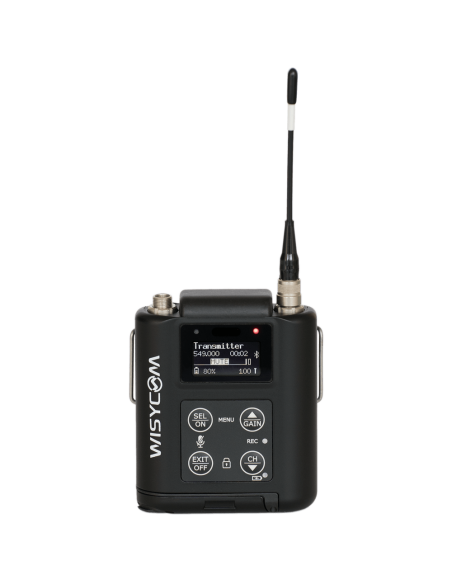

Trasmettitore tascabile UHF, larghezza di banda 362MHz, range 470-1160 MHz, monitoraggio Bluetooth

Trasmettitore tascabile UHF, larghezza di banda 362MHz, range 470-1160 MHz, monitoraggio Bluetooth

Codice Prodotto: MTP60

Hai bisogno di maggiori informazioni su questo prodotto?

Contattaci subito

Il trasmettitore da cintura multibanda più piccolo e leggero sul mercato, l’MTP61 ha la gamma di sintonizzazione più ampia attualmente disponibile (da 470 a 1260 MHz).

Tra i trasmettitori più potenti del settore, il design compatto dell’MTP61 non solo lo rende comodo, ma ideale anche per il cinema e per applicazioni teatrali.

È dotato di un modulo Bluetooth che permette di regolare i parametri in tempo reale tramite l’App.

Offre un registratore incorporato per registrare direttamente sulla scheda micro SD interna da 64 GB e una decodifica lineare Time Code integrata.

VISITA IL SITO DEL PRODUTTORE

Tipologia radiomicrofono: Sistema microfonico wireless

Frequency ranges	from 470 to 1075 Mhz, depends on the country (see Configurations)
Switchable channels	2400 managed in 40 groups ofr 60 frequencies completely user customizable
Switching-window	Up to 362 MHz, depending on band (see Configurations)
Frequencies	Quartz PLL frequency synthesizer circuit (5 kHz step)
Frequency error	±2.5 ppm, in the rated temperature range
RF Power	switchable typ. 10mW/L10 W/ 20 mW/ L20 mW / 50 mW /100 mW note: in some countries high power can be disabled, for local norm!
Antenna connector	LEMO-F 1 pin
Modulation	wideband/narrowband FM, with digital audio conditioning (FPGA)
Nominal deviation	±40 kHz Wideband / ±25 kHz Narrowband
Peak deviation	±56 kHz Wideband / ±35 kHz Narrowband
Spurious emissions	< 2 nW
Telemetry feature	TX transmits also a digitally modulated sub-carrier, suitable for: tone-squelch operating remote battery monitoring optional PTT (push to talk) operation
Noise Reduction system	ENS - Wisycom Extended-Sound Optimized
AF bandwidth	45 Hz ÷ 17 KHz (3dB) in NarrowBand mode (NB) 45 Hz ÷ 20 KHz (3dB) in WideBand mode (WB)
Distortion	< 0.3 % (0.15 % typ.)
SND/D ratio (Analogue)	typ. 115 dB (A)rms with 40 kHz deviation; typ. 121 dB (A)rms with 56 kHz deviation Wideband typ. 115 dB (A)rms with 25 kHz deviation; typ. 121 dB (A)rms with 35 kHz deviation Narrowband
Audio input connector	LEMO 3pin
Audio input level	from -36 dBu (12mV RMS) to 26 dBu (15.5 V RMS) adjustable in 1 dB steps
Max input level	+26 dBu (15.5 V) at clipping, +20 dBu (7.75 V) at nominal level
Storage media	micro SD memory card (.wav files - BWF)
Time code	Linear time code decoding
Bit rate	16 bit / 24 bit / 32 bit
Sampling rate	48 kHz
Managing interface	Bluetooth 5 long range, USB-C, IrDA
LED	2 RGB LEDs (red, green and blue) for audio, RF and battery status. 1 LED for recording, 1 LED for battery charger
Battery lifetime indication	percentage or minute/second
PTT function	Pin 3 of the AF connector can be setup to an external push button
Display	High contrast OLED white display (128 x 64 pixels)

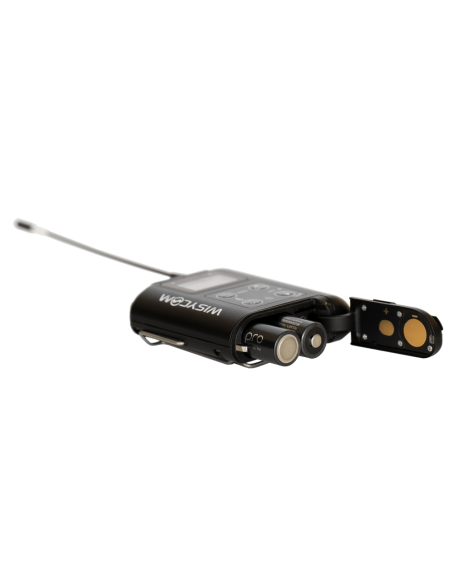

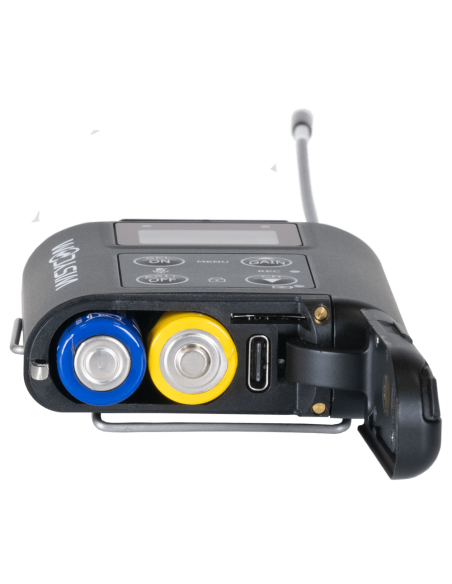

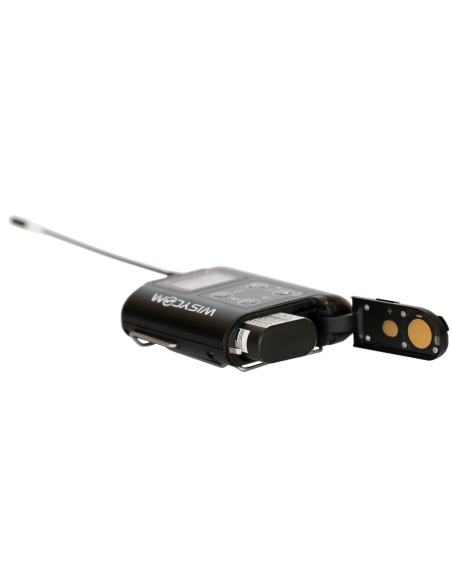

Power supply	2 x AA battery (Alkaline, NiMh or Lithium), MPRLBP lithium (5.55 Wh)
Power consumption	250mA@ 2.6V average (display off, 100mW power)
Battery life	approx. 10 hours @ 10mW with Alkaline batteries
Temperature range	-10 ÷ +55 °C
Dimensions	75,7mm x 61,4mm x 19,4mm (HxWxD) without clip
Weight	Approx. 140 g. without batteries (183 g. with lithium batt.)
