Processore Multiview HDMI 4x1, risoluzione fino a 4K60 e HDR 10 bit
Processore Multiview HDMI 4x1, risoluzione fino a 4K60 e HDR 10 bit
Processore Multiview HDMI 4x1, risoluzione fino a 4K60 e HDR 10 bit
Processore Multiview HDMI 4x1, risoluzione fino a 4K60 e HDR 10 bit

Processore Multiview HDMI 4x1, risoluzione fino a 4K60 e HDR 10 bit

MV-H2-0401-10
Array ( [lastname] => [firstname] => [email] => [last_passwd_gen] => [birthday] => [newsletter] => [newsletter_date_add] => [ip_registration_newsletter] => [optin] => [website] => [company] => [siret] => [ape] => [outstanding_allow_amount] => 0 [max_payment_days] => 0 [active] => 1 [note] => [is_guest] => [id_shop] => [id_shop_group] => [id_default_group] => 1 [date_add] => [date_upd] => [reset_password_token] => [reset_password_validity] => [id] => [is_logged] => [gender] => Array ( [type] => [name] => [id] => ) [risk] => Array ( [name] => [color] => [percent] => [id] => ) [addresses] => Array ( ) ) 1

Hai bisogno di maggiori informazioni su questo prodotto?

Contattaci subito

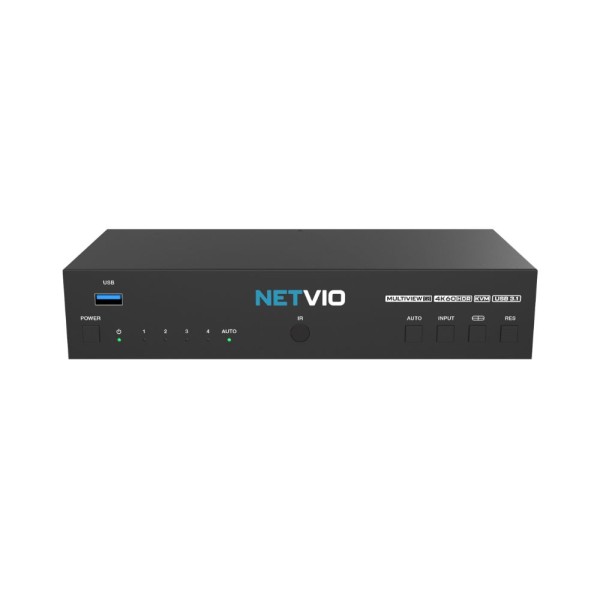

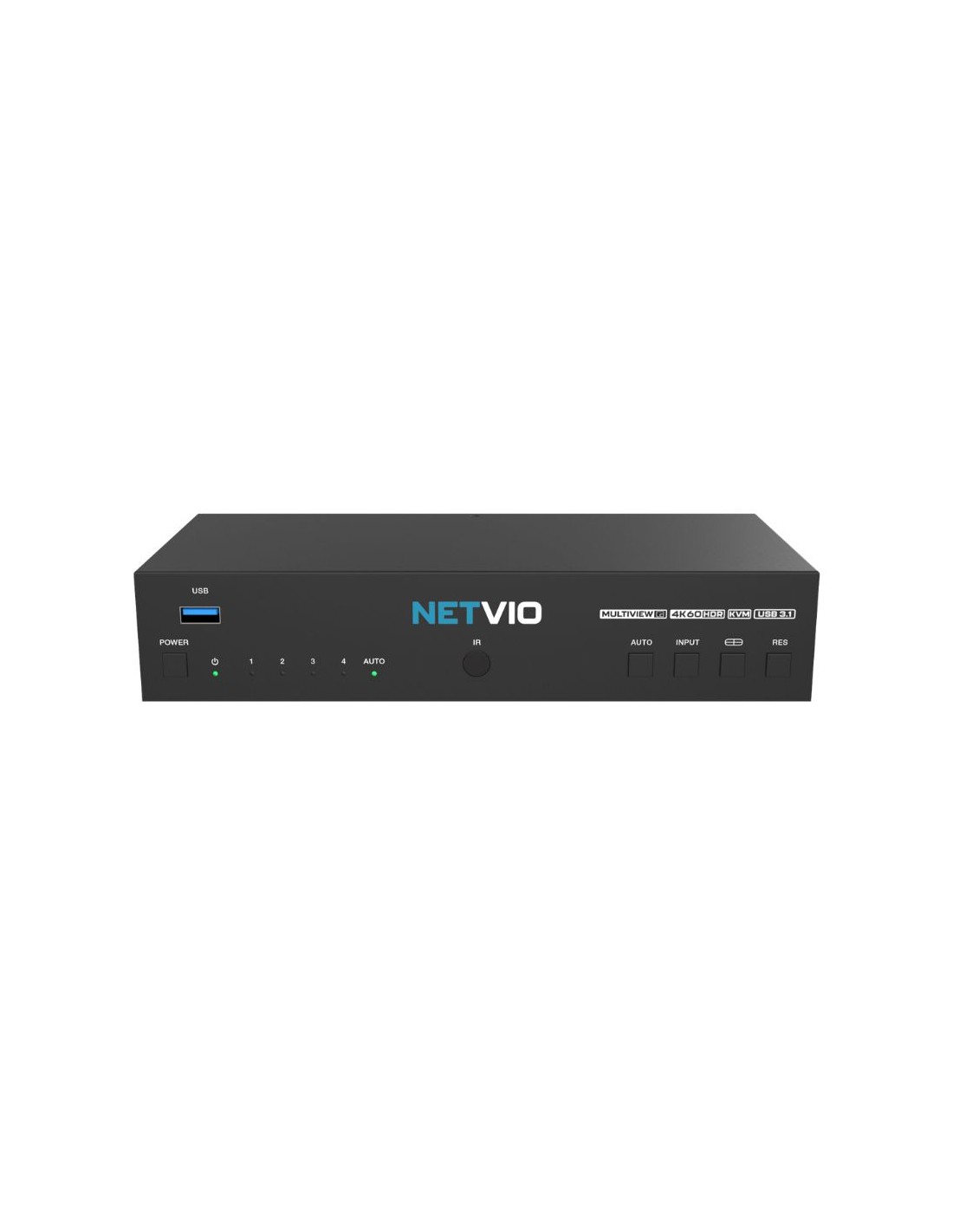

Il MV-H2-0401-10 di Netvio è un multiviewer HDMI 2.0 4×1 per utilizzo HDMI standalone oppure per integrazione perfetta con la piattaforma AVoIP Netvio serie JP4.
Supportando video 4K60 4:4:4 HDR a 18 Gbps con HDCP 2.2, consente di combinare fino a quattro sorgenti HDMI in un unico display UHD con molteplici layout multiview senza interruzioni.

All’interno di una configurazione JP4, abilita un vero multiviewer su rete, permettendo la visualizzazione di qualsiasi sorgente in modalità PIP, PBP, Triple o Quad, rendendolo ideale per sale controllo, broadcast, ambienti aziendali e applicazioni didattiche.


Visita il sito del produttore

Video

• Compliance: HDMI 2.0b, HDCP 2.2 / 1.x

• Bandwidth: 18Gbps uncompressed

• Resolutions: Up to 3840×2160 @60Hz 4:4:4, 8/10/12-bit

• Color Space: RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0

• HDR Formats: HDR10, Dolby Vision, HLG

Audio

• HDMI: LPCM 2.0 / 5.1 / 7.1, Dolby Digital, DTS

• Analog: Stereo L/R (RCA) – PCM 2.0

• Optical (S/PDIF): Dolby Digital, DTS 5.1, PCM 2.0

• Audio De-Embedding: Independent selection and volume control

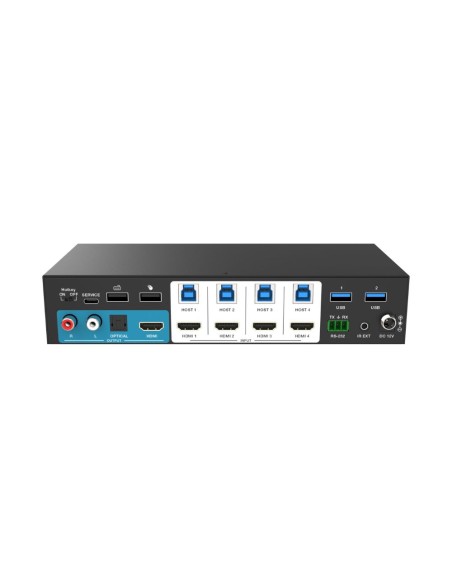

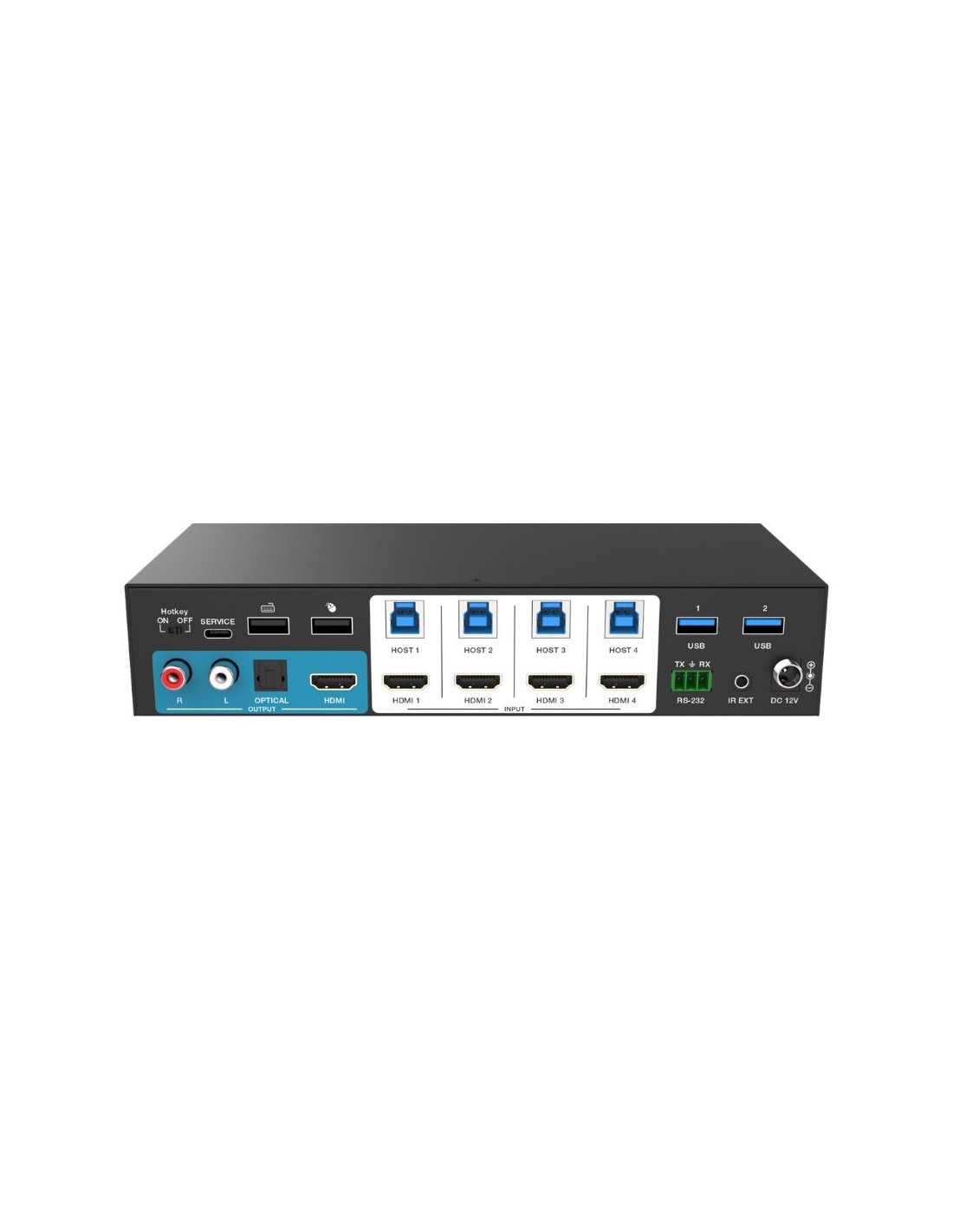

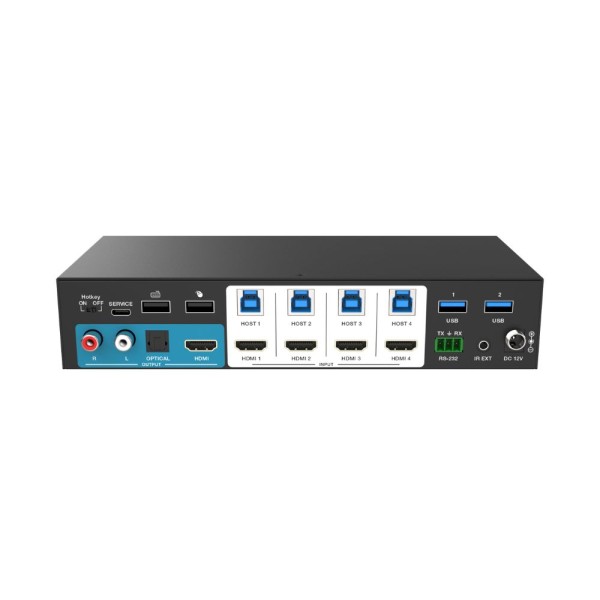

Inputs / Outputs

• Inputs: 4× HDMI Type-A (female)

• Output: 1× HDMI Type-A (female)

• Audio Outputs: 1× L/R RCA, 1× Optical S/PDIF

• USB: 2× USB 2.0 Device, 3× USB 3.0 Device (shared with KVM)

Environmental

• Operating Temperature: 0–40°C / 32–104°F

• Storage Temperature: -20–60°C / -4–140°F

• Humidity: 20–90% RH (non-condensing)

Power

• Supply: 12V DC (locking connector)

• Consumption: <20W

What's in the box

• 1× MV-H2-0401-10 HDMI Multiviewer

• 1× 19″ Rack Mount Kit (rack ears & screws for smart rack presentation)

• 1× IR Remote Control

• 1× 12V DC Locking Power Supply

• 1× User Manual

• 1× Set of Mounting Accessories

• 4× USB Cable (USB 3.0 Type-A to Type-B, 1.8m)

Control

• Local: Front panel buttons, IR remote, OSD navigation

• Serial: RS-232 (3-pin phoenix)

• Software: Netvio AppBuilder, NetvioGo (license-inclusive)

• Third-Party: Crestron, Q-Sys drivers

Multiview Modes

• Single, PIP, PBP (1), PBP (2), Triple (1), Triple (2), Quad (1), Quad (2)

• Seamless switching with border and aspect ratio adjustment

Mechanical

• Dimensions: 220mm × 100mm × 44mm (8.66″ × 3.94″ × 1.73″)

• Weight: 443g (0.98 lbs)

• Housing: Metal enclosure

• Rack Mount: 19″ rack ears included in the box (smart rack presentation)
