GeNetix GW2O EU nodo ethernet DMX OUT 2 porte, alimentato PoE, wall mount
GeNetix GW2O EU nodo ethernet DMX OUT 2 porte, alimentato PoE, wall mount
GeNetix GW2O EU nodo ethernet DMX OUT 2 porte, alimentato PoE, wall mount
GeNetix GW2O EU nodo ethernet DMX OUT 2 porte, alimentato PoE, wall mount

GeNetix GW2O EU nodo ethernet DMX OUT 2 porte, alimentato PoE, wall mount

CS300078
Array ( [lastname] => [firstname] => [email] => [last_passwd_gen] => [birthday] => [newsletter] => [newsletter_date_add] => [ip_registration_newsletter] => [optin] => [website] => [company] => [siret] => [ape] => [outstanding_allow_amount] => 0 [max_payment_days] => 0 [active] => 1 [note] => [is_guest] => [id_shop] => [id_shop_group] => [id_default_group] => 1 [date_add] => [date_upd] => [reset_password_token] => [reset_password_validity] => [id] => [is_logged] => [gender] => Array ( [type] => [name] => [id] => ) [risk] => Array ( [name] => [color] => [percent] => [id] => ) [addresses] => Array ( ) ) 1

Hai bisogno di maggiori informazioni su questo prodotto?

Contattaci subito

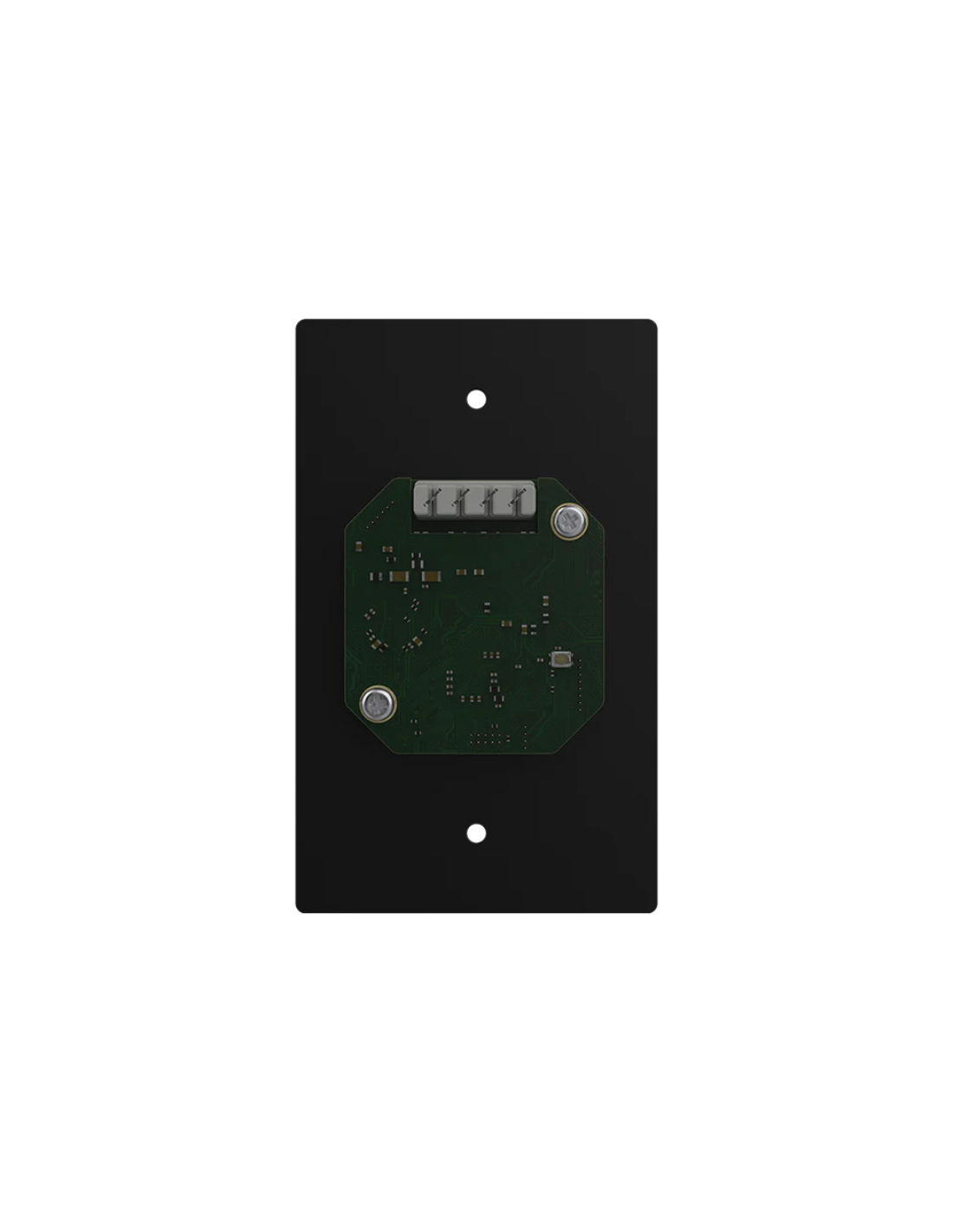

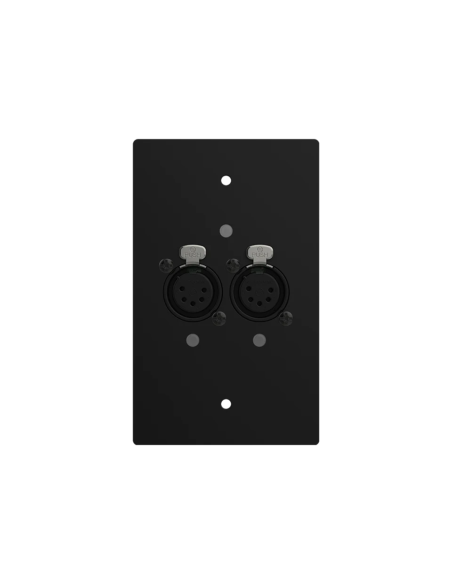

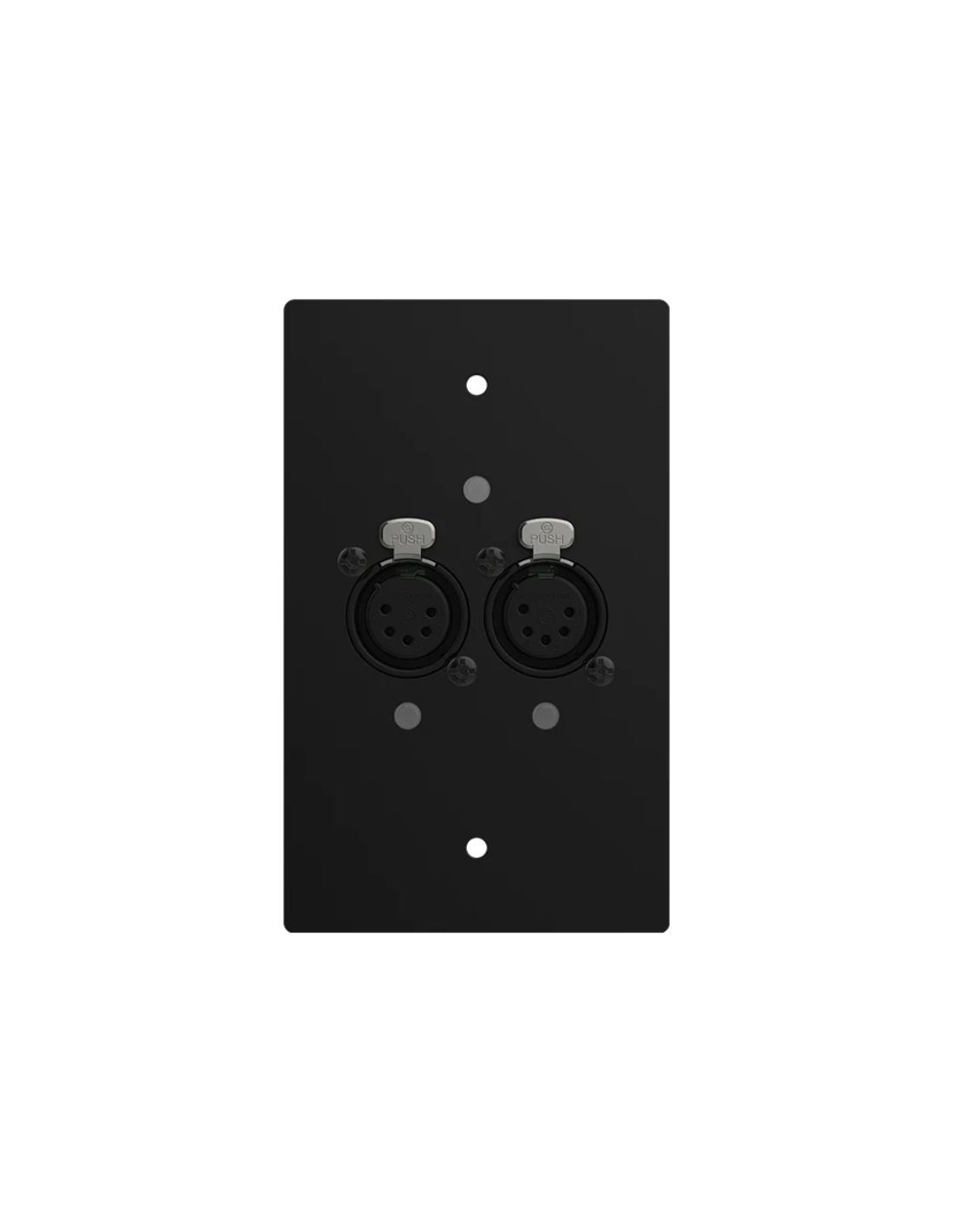

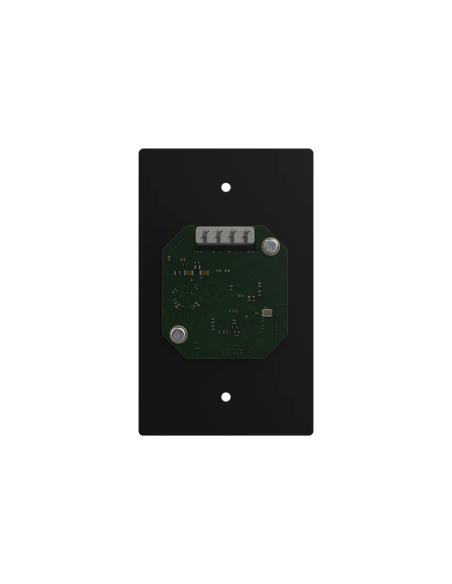

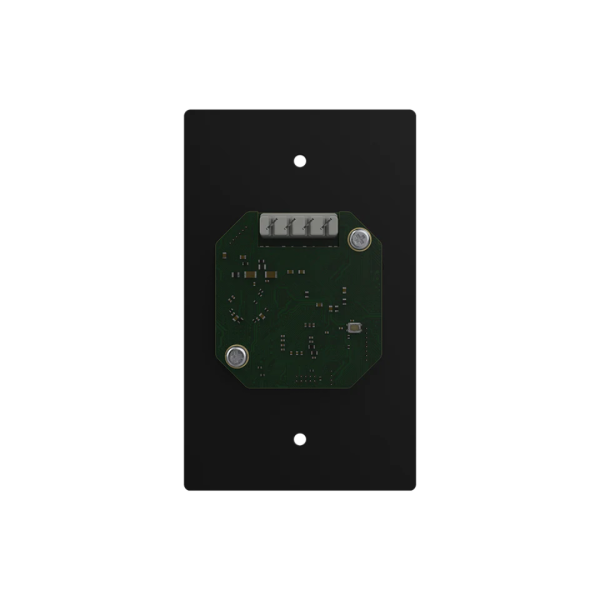

GeNetix Wall Mount Node 2 è un nodo alimentato PoE a due porte per il montaggio a parete, disponibile per l'inserimento in scatole posteriori standard a singola banda per UE/USA e Regno Unito.

Disponibile con porte fisiche RDM Direct DMX maschio o femmina, entrambe le versioni supportano sia l'ingresso che l'uscita DMX.

GeNetix Wall Mount Node 2 è ideale per qualsiasi installazione fissa, supporta Art-Net e sACN ed è configurabile dalle console ChamSys, tramite il server web incorporato o tramite Art-Net.

Visita il sito del produttore

Applicazione
Installazione fissa
Live
Tipologia
Nodi Lighting
Numero porte
2

Hardware Specifications:

RDM Direct DMX Ports: 2

Network Ports: 1 (punchdown connector)

PoE Powered: Yes

Available in variants to fit U.K., E.U. & U.S.A single gang box boxes.

Available with either Male or Female DMX Ports

Supplied with interchangeable Black or White faceplates

Software Specifications:

Art-Net/sACN: Yes

ChamNet Support: Yes

Configurable DMX Timings: Yes

Web Server: Yes

DMX Redundancy Support: Yes

Unlock's ‘demo mode’ MagicQ PC Systems: No

Included Accessories:

Black and White Face Plates

EU Version Weights and Dimensions:

Width: 80mm (3.14 inches)

Depth: 37.5mm (1.48 inches)

Height: 80mm (3.14 inches)

Weight: 0.15KG (0.33lb)
